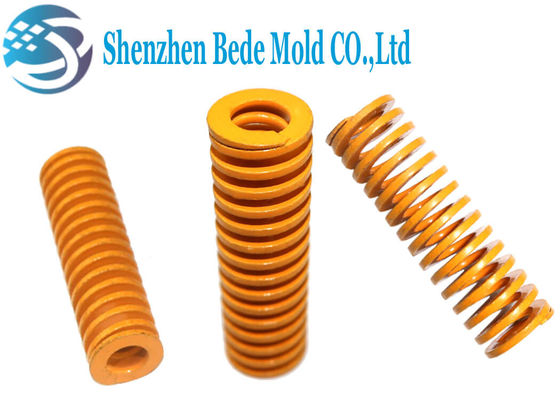

Metal Yellow Die Springs Mold ISO10243 , Injection Mould Industrial Coil Springs

Metal Yellow Die Springs Mold ISO10243 , Injection Mould Industrial Coil Springs

  • Metal Yellow Die Springs Mold ISO10243 , Injection Mould Industrial Coil Springs
  • Metal Yellow Die Springs Mold ISO10243 , Injection Mould Industrial Coil Springs
Metal Yellow Die Springs Mold ISO10243 , Injection Mould Industrial Coil Springs
Product Details:
Place of Origin: China
Brand Name: BD
Certification: RoHS
Model Number: BD~s0000
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: PP bags and wood carton
Delivery Time: 10~15 work days
Payment Terms: Western Union, L/C, D/A, D/P, T/T
Supply Ability: 120000~150000 pieces per month
Contact Now
Detailed Product Description
Color: Yellow Material: Chromium Alloy Steel
Size: ISO10243 Packing: PE Bags Or Customized
Service Life: Depending On The Compression Ratio Load: Overweight Load
High Light:

industrial compression spring

,

industrial coil springs

Rectangle Spring / Overweight Duty Die Dprings Yellow Color Mc-ISO International Standard

Click to download the ISO 10243 yellow color.pdf

Discraption

   Springs are widely used in stamping dies, metal die-casting dies, plastic molds and other elastic precision mechanical equipment, automobiles and other fields.

   The material of die spring is usually chromium alloy steel, because its characteristics of high temperature resistance, rigidity and long service life.



   According to JIS standards, the color and load are as follows:

Load Compression Ratio % Color
Light 32 36 40 Blue
Medium 25.6 28.8 32 Red
Heavy 19.2



21.6
24 Green
Overweight 16 18 20 Brown

Life length /

Compression times

1,000,000 500,000 300,000



   According to ISO10243 standards, the color and load are as follows:

Color yellow  red  blue Green
Load Overweight  load heavy load Medium load light load

Metal Yellow Die Springs Mold ISO10243 , Injection Mould Industrial Coil Springs 0

Compression and load

The maximum compression of this series of springs is 58% of the free length. Load = elastic coefficient * compression, please contact us for more information.



Size(mm) Elastic
coefficient(N/mm)
Compressed
length(mm)
Load(N)
Outer diameter Inner diameter free length
10 5 305 2.7 61 165
16 8 305 4.3 61 262
20 10 305 21 61

1281



Quick Details

   All of our springs are manufactured according to Japan JIS industrial standard, and customized size is welcome.



materials chromium alloy steel Size ISO10243
color yellow ODM / OEM welcome



Standard Size

We have the following standard sizes of springs in stock, generally can be shipped within 3 working days, if it is customized , delivery time is generally 15-20 days.

 Outer diameter * inner diameter / mm

10*5

12.5*6.3

16*8

20*10

25*12.5

32*16

40*20

50*25
Length / mm   25,32,38,44,51,64,76,89,102,115,127,139,152,178,203,254...



Treatment

     The following processes are the treatment  to ensure product quality.



Pressure treatment:

   The spring to do more than three times of pressure treatment, eliminating the internal stress before use, no spring deformation, shorten the breakage and other phenomena.



Strengthened treatment:

   Spring surface strengthened shot peening treatment, improve the strength of stress concentration point, prolong the fatigue life of the spring.



Surface treatment:

     Adopt advanced color electrophoretic paint process, conform to European SOS standard, make the product paint surface even, adhesion is stronger.



Attention

     Usually, the proportion of service life depends on the spring and compressed, probably relations are as follows,3 points should be paid attention to prevent premature failure of the spring:
     1.Maintaining initial compression more than 1mm
     2. Prevent any other articles from the middle of the spring
     3. Keep vertical compression to prevent bending
