50CrVA Materails Mold Spring Light Load Stamping Die TL Injection OD 25mm Durable

50CrVA Materails Mold Spring Light Load Stamping Die TL Injection OD 25mm Durable

  • 50CrVA Materails Mold Spring Light Load Stamping Die TL Injection OD 25mm Durable
  • 50CrVA Materails Mold Spring Light Load Stamping Die TL Injection OD 25mm Durable
  • 50CrVA Materails Mold Spring Light Load Stamping Die TL Injection OD 25mm Durable
50CrVA Materails Mold Spring Light Load Stamping Die TL Injection OD 25mm Durable
Product Details:
Place of Origin: China
Brand Name: BD
Certification: RoHS
Model Number: BD~s0000
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: 0.4~1.5 USD per piece
Packaging Details: Plistic bags
Delivery Time: within 2 days for retail, 10~15 days for wholesale
Payment Terms: Western Union, L/C, D/A, D/P, T/T
Supply Ability: 120000~150000 pieces per month
Contact Now
Detailed Product Description
Color: Blue Material: 50CrVA
Size: Outer Diameter 25 Mm Packing: PE Bags
Service Life: Depending On The Compression Ratio Load: Lightest Load
High Light:

industrial compression spring

,

industrial coil springs

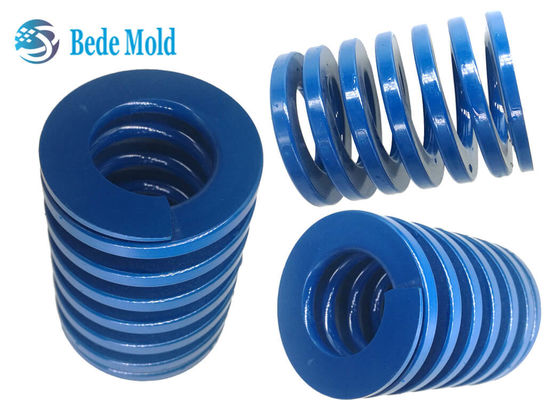

TL Injection Mold Spring Light Load Stamping Die Spring 50CrVA Materails OD 25 mm Blue Color

Discraption

  • Mateials: Alloy steel 50CrVA
  • Load:  light Load  TL
  • Color: blue
  • Compression Ratio: 40% maximum
  • Outer Diameter: 25 mm, Inner diameter 12.5 mm
  • Length: 20~300 mm
  • Production standards: Japan JIS

50CrVA Materails Mold Spring Light Load Stamping Die TL Injection OD 25mm Durable 0

Load Color Compression Ratio %
Lightest yellow 40 45 50
Light blue 32 36 40
Medium red 25.6 28.8 32
Heavy green 19.2 21.6 24
Overweight Brown 16 18 20
Life length/Compression times 1,000,000 500,000 300,000


Quick Details


materials  Alloy steel  50CrVA  outer diameter 25mm
Compression Ratio  40% maxi.  inner diameter 12.5 mm
color  blue color  load  light load TL


Length and price


Size Length / Millimeter
 Φ 25 20 25 30 35 40 45 50 55 60 65 70 75 80 90 100 125 150 175 200 250 300
Price/USD 0.42 0.46 0.5 0.54 0.58 0.62 0.65 0.69 0.71 0.73 0.77 0.8 0.85 0.88 0.96 1.07 1.15 1.23 1.3 1.38 1.53



Other size

   We have the following sizes on stock, and will ship within 2 days after receiving the payment, but the quantity of the stock changes at any time,   so please contact us for confirmation before purchase.

OD Φmm 8 10 12 14 16 18 20 22 25 27 30 35 40 50 60 70
ID Φmm 4 5 6 7 8 9 10 11 12.5 13.5 15 17 20 25 30 35
Length mm 20~300 40~500


Application

 Springs are widely used in stamping dies, metal die-casting dies, plastic molds and other elastic precision mechanical equipment, automobiles and other fields.

Attention

     Usually, the proportion of service life depends on the spring and compressed, probably relations are as follows,3 points should be paid attention to prevent premature failure of the spring:
     1.Maintaining initial compression more than 1mm
     2. Prevent any other articles from the middle of the spring
     3. Keep vertical compression to prevent bending

 50CrVA Materails Mold Spring Light Load Stamping Die TL Injection OD 25mm Durable 1


Order and payment
  • Please pay attention to our minimum order quantity.
  • All shipping terms are available, please contact us for shipping cost.
  • Prices can be negotiated for bulk order,
  • customized size is available

    About the payment, T/T, PayPal and WestUnion is welcome, for the bulk order , please feel free to contact us for whlesale price.

Contact Paypal Western Union
Name Alice Chu alicechu@szbede.com First name: CAIXIA
whatsapp +8618938686395 Last name: CHU
Mobile +8618938686395 Address: Xinqiao Street,Bao'an District, Shenzhen, China
Office +8675527084976
Email alicechu@szbede.com
