Shenzhen Bede Mold Co., Ltd
One Stop Total Solution Supplier of Injection Mold and Stamping Dies
 |
| Place of Origin: | China |
| Brand Name: | BEDE |
| Certification: | R0SH |
| Model Number: | stripper bolt |
| Minimum Order Quantity: | 200 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 1000 Per Box |
| Delivery Time: | 15-25 Work Days |
| Payment Terms: | D/A, D/P, T/T, Western Union, |
| Supply Ability: | 100K per Day |
| Product Name: | Socket Head Shoulder Screws | Rod Diamater: | 20mm |
|---|---|---|---|
| Thread: | M16*2.0 | Application: | Injection Mould |
| Standard: | DIN 7379 | Materials: | SCM435 |
| High Light: | DIN 7379 Injection Mould Shoulder Screws,SCM435 Injection Mould Shoulder Screws,M5 Socket Head Shoulder Screws |
||

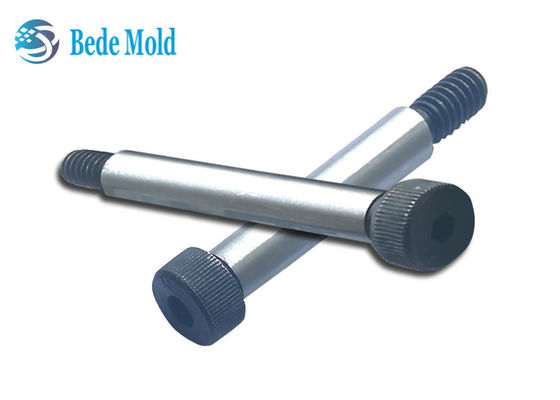

DIN 7379 SCM435 Injection Mould Shoulder Screws 6mm Rod M5 Threaded
Specifications of M5 Injection Mould Shoulder Screws
| D | d1*p | dk | H | T | b | s | L |
| 6 | M5*0.8 | 10 | 4.32 | 2.4 | 9.75 | 3 | 16, 20, 25,30...80max |
Inquiry mode: D*L*d1*QTY, E.g: tell us "Shoulder bolt 6*65*M5*800", you will get the offical quotation ASAP, the rod diameter 6mm, length 65mm, thread M6*0.8, quantity 800 pcs.
Quick Details of M5 Injection Mould Shoulder Screws
| Thread Size | M5*0.8 | Driver type | Socket head |
| Materials | SCM435, 33~35HRC | Head Size | 10*4.32mm |
| Rod diameter | 6mm | Production standards | DIN 7379 |
| Length of Rod | 16, 20, 25, 30, 35, 40, 45,50, 55,60,65,70,80mm | ||
Description of M5 Injection Mould Shoulder Screws
Hex socket head shoulder screws, also known as shoulder bolts, stripping bolts, etc., are used together with the tie rods to control the mold opening stroke of the three-plate mold.
The product has high hardness, good toughness, excellent wear resistance and heat resistance, can significantly improve the service life of the mold, and the hot shape of the precision mold can be effectively controlled, and is suitable for the mold working at high temperature.
How to Buy
About the payment, T/T, PayPal and WestUnion is welcome, for the bulk order , please feel free to contact us for whlesale price.
| T/T | Paypal | Western Union | ||||||||
| Bank Name | DBS Bank(Hong Kong) Limited | alicechu@szbede.com | First name: | CAIXIA | ||||||
| Bank Address | 11th Floor, The centre, 99 Queen's Road Central,Central,HongKong | Last name: | CHU | |||||||
| SWIFT Code | DHBKHKHH | Address: | Xinqiao Street,Bao'an District, Shenzhen, China | |||||||
| Account Name | XT Shenzhen Bede mold CO, Ltd | |||||||||
| account NO. | 79969019953 | |||||||||
| Contact: | Name: Kerry Kim | Telephone of office: +86 755 527084976 | ||||||||
| Mobile/ whatsapp:+8615915396878 | Email: kerrykim@szbede.com |
|||||||||
