Flat Wire Heavy Duty Die Springs Lightest Load TF Mold Type 60Si2MnA Materials

Flat Wire Heavy Duty Die Springs Lightest Load TF Mold Type 60Si2MnA Materials

  • Flat Wire Heavy Duty Die Springs Lightest Load TF Mold Type 60Si2MnA Materials
  • Flat Wire Heavy Duty Die Springs Lightest Load TF Mold Type 60Si2MnA Materials
  • Flat Wire Heavy Duty Die Springs Lightest Load TF Mold Type 60Si2MnA Materials
Flat Wire Heavy Duty Die Springs Lightest Load TF Mold Type 60Si2MnA Materials
Product Details:
Place of Origin: China
Brand Name: BD
Certification: RoHS
Model Number: BD~s0000
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: 0.1~0.8 USD per piece
Packaging Details: Plistic bags
Delivery Time: within 2 days for retail, 10~15 days for wholesale
Payment Terms: Western Union, L/C, D/A, D/P, T/T
Supply Ability: 120000~150000 pieces per month
Contact Now
Detailed Product Description
Color: Yellow Material: 60Si2MnA
Size: Outer Diameter 16 Mm Packing: PE Bags
Service Life: Depending On The Compression Ratio Load: Lightest Load
High Light:

industrial compression spring

,

industrial coil springs

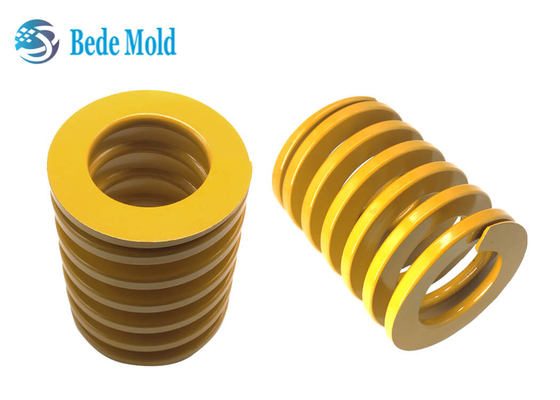

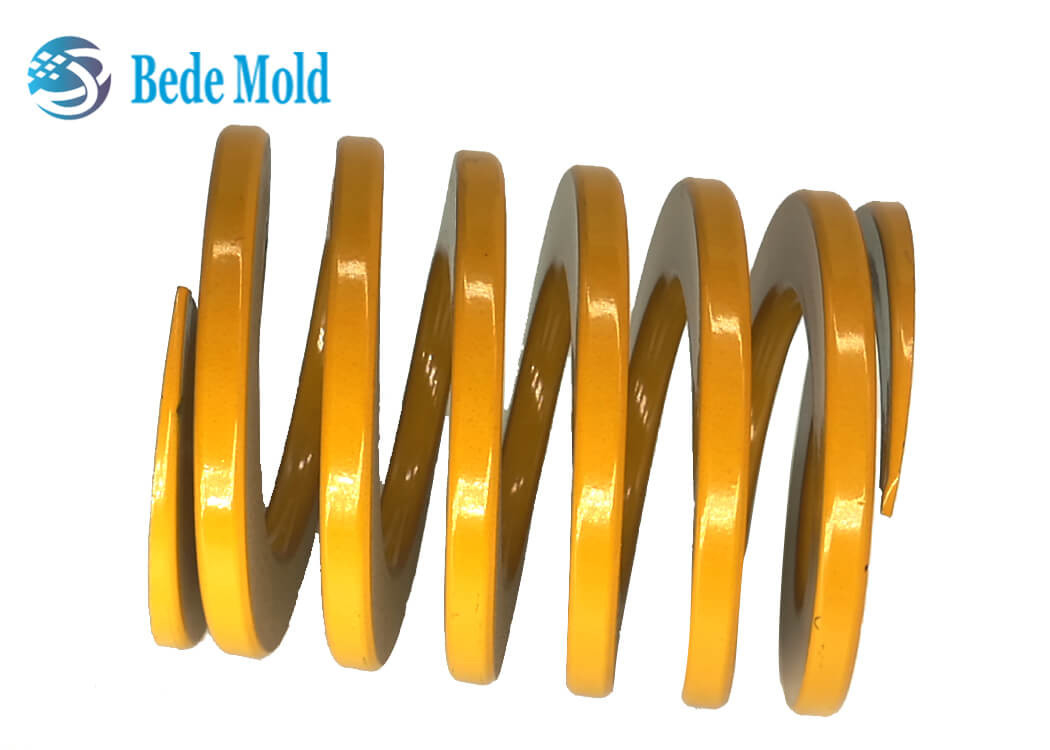

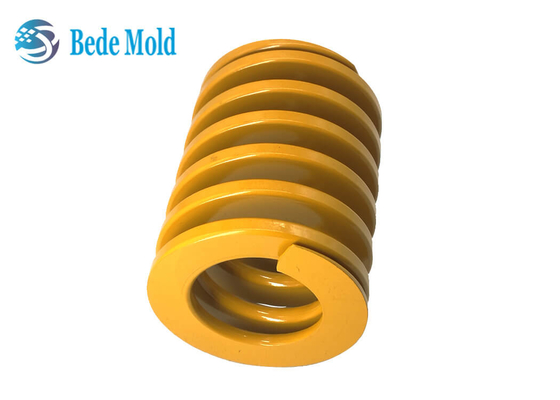

Flat Wire Spring Lightest Load TF Mold Spring 60Si2MnA Materials OD 16 mm Yellow Color

Discraption

  • Mateials: Alloy spring steel 60Si2MnA
  • Load:  lightest Load  TF
  • Color: Yellow
  • Compression Ratio: 50% maximum
  • Outer Diameter: 16 mm
  • Length: 20~300 mm
  • Production standards: Japan JIS
Load Color Compression Ratio %
Lightest yellow 40 45 50
Light blue 32 36 40
Medium red 25.6 28.8 32
Heavy green 19.2 21.6 24
Overweight Brown 16 18 20
Life length/Compression times 1,000,000 500,000 300,000

 Flat Wire Heavy Duty Die Springs Lightest Load TF Mold Type 60Si2MnA Materials 0
Quick Details


materials  60Si2MnA / 50CrVA  outer diameter 16 mm
color  yellow  load  lightest


Length and price


Size Length / Millimeter
 Φ 16 20 25 30 35 40 45 50 55 60 65 70 75 80 90 100 125 150 175 200 250 300
Price/USD 0.18 0.20 0.21 0.23 0.27 0.30 0.35 0.39 0.42 0.44 0.48 0.50 0.54 0.58 0.62 0.69 0.77 0.85 0.92 0.99 1.08



Other size

We have the following sizes of products on stock, and ship within two days after receiving the payment, but the quantity of the stock changes at any time. Please contact us for confirmation before purchase.

OD Φmm 8 10 12 14 16 18 20 22 25 27 30 35 40 50 60 70
ID Φmm 4 5 6 7 8 9 10 11 12.5 13.5 15 17 20 25 30 35
Length mm 20~300 40~500


Application

 Springs are widely used in stamping dies, metal die-casting dies, plastic molds and other elastic precision mechanical equipment, automobiles and other fields.

Attention

     Usually, the proportion of service life depends on the spring and compressed, probably relations are as follows,3 points should be paid attention to prevent premature failure of the spring:
     1.Maintaining initial compression more than 1mm
     2. Prevent any other articles from the middle of the spring
     3. Keep vertical compression to prevent bending

 Flat Wire Heavy Duty Die Springs Lightest Load TF Mold Type 60Si2MnA Materials 1


Order and payment
  • Please pay attention to our minimum order quantity.
  • All shipping terms are available, please contact us for shipping cost.
  • Prices can be negotiated for bulk order,
  • customized size is available

    About the payment, T/T, PayPal and WestUnion is welcome, for the bulk order , please feel free to contact us for whlesale price.
