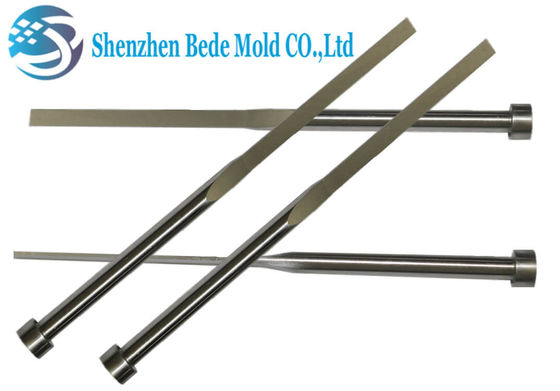

Nitrided Temperature Resistant Ejector Blade SKD61 Plastic Injection Mold

Nitrided Temperature Resistant Ejector Blade SKD61 Plastic Injection Mold

    • Nitrided Temperature Resistant Ejector Blade SKD61 Plastic Injection Mold
    • Nitrided Temperature Resistant Ejector Blade SKD61 Plastic Injection Mold
  • Nitrided Temperature Resistant Ejector Blade SKD61 Plastic Injection Mold

    Product Details:

    Place of Origin: China
    Brand Name: BD
    Certification: RoHS
    Model Number: BDE000

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: 20 pieces in a PE bag and then packing by wood cartons
    Delivery Time: within 15 work days
    Payment Terms: L/C, , D/A, D/P, T/T, Western Union
    Supply Ability: 80000~100000 pieces per month
    Contact Now
    Detailed Product Description
    Materials: Hot Die Steel SKD61 Hardness: 55~60°
    Size: φ1.0~20(HASCO Standard) Packing: 20 Pcs In A PE Bag
    Treatmengt: Nitrided OEM / ODM: Welcome
    Type: Ejector Blades Tolerance: 0.005 Mm
    High Light:

    Nitrided Ejector Blade

    ,

    Temperature Resistant Ejector Blade

    ,

    SKD61 Plastic Injection Mold

    Ejector Blade Nitrided Temperature Resistant for Plastic Injection Mold



    Description of ejector blades

       Ejector blade is mainly used to eject the ribs of plastic products and eject long products. When the ejector pins cannot be put down, we choose to use it also.



    Standard Size

      According to HASCO standard, we have the following standard sizes of thimbles in stock, generally can be shipped within 3 working days, if customized thimbles, delivery time is generally 15-20 days.



    Size Size of Head Height of Head Size Size of Head Height of Head
    Φ1.0 Φ2.5 1.20 Φ6.0 Φ12.0 5.00
    Φ1.2 Φ2.5 1.20 Φ6.5 Φ12.0 5.00
    Φ1.5 Φ3.0 1.50 Φ7.0 Φ12.0 5.00
    Φ1.8 Φ3.0 1.50 Φ8.0 Φ14.0 5.00
    Φ2.0 Φ4.0 2.00 Φ8.5 Φ14.0 5.00
    Φ2.2 Φ4.0 2.00 Φ9.0 Φ14.0 5.00
    Φ2.5 Φ5.0 2.00 Φ10.0 Φ16.0 5.00
    Φ3.0 Φ6.0 3.00 Φ10.5 Φ16.0 5.00
    Φ3.2 Φ6.0 3.00 Φ11.0 Φ16.0 5.00
    Φ3.5 Φ7.0 3.00 Φ12.0 Φ18.0 7.00
    Φ4.0 Φ8.0 3.00 Φ14.0 Φ22.0 7.00
    Φ4.2 Φ8.0 3.00 Φ15 NA
    Φ4.5 Φ8.0 3.00 Φ16.0 Φ22.0 7.00
    Φ5.0 Φ10.0 3.00 Φ18.0 Φ24.0 7.00
    Φ5.5 Φ10.0 3.00 Φ20.0 Φ26.0 8.00






    Quick Details

    For different applications, thimble usually has the following three kinds:

    1. Straight ejector pins,

    2. Steped ejector pins,

    3. Mold ejector blades.



    materials Hot die steel SKD61 type  Straight ejector pins
    hardness HRC 55~60° size φ1.0~20(HASCO standard)
    tolerance 0.01mm ODM / OEM welcome

    Nitrided Temperature Resistant Ejector Blade SKD61 Plastic Injection Mold 0

    Materials

        High speed steel SKH51, SKD61, SKD11 and 65Mn were usually used to make the ejector pins. The toughness of SKH51 is better than SKD61, but SKD61 can withstand high temperature 1600℃, and if it was after surface nitriding treatment, the wear resistance can be improved very well.      Because of its poor quality and brittleness, the application of 65Mn is becoming less and less in ejector pins industry recently.





    Nitrided Temperature Resistant Ejector Blade SKD61 Plastic Injection Mold 1



    Packing and Shipping



     The ejector pins are packaged with plastic bags with rust preventing oil, customized package is welcome.

       About the shipping, all the well-known express companies and ocean shipping can be selected, but in remote areas, we can only use EMS.
