Home ProductsMold Sprue Bushing

Customized Precision Plastic Mold Sprue Bushing Hotwoek Die Steel SKD61 Materials

Customized Precision Plastic Mold Sprue Bushing Hotwoek Die Steel SKD61 Materials

    • Customized Precision Plastic Mold Sprue Bushing Hotwoek Die Steel SKD61 Materials
    • Customized Precision Plastic Mold Sprue Bushing Hotwoek Die Steel SKD61 Materials
  • Customized Precision Plastic Mold Sprue Bushing Hotwoek Die Steel SKD61 Materials

    Product Details:

    Place of Origin: China
    Brand Name: BD
    Certification: RoHS
    Model Number: BDSB0000

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: PE bags
    Delivery Time: 5~8 work days
    Payment Terms: Western Union, L/C, D/A, D/P, T/T
    Supply Ability: 5000 pieces per week
    Contact Now
    Detailed Product Description
    Materials: Hotwoek Die Steels SKD61 Hardness: 50~52
    Tapy: A Size: φ2.5



    SKD61 Materials Type A Sprue Bushing Heat Resistant and Wear Resistant for Injection Mold





    Description

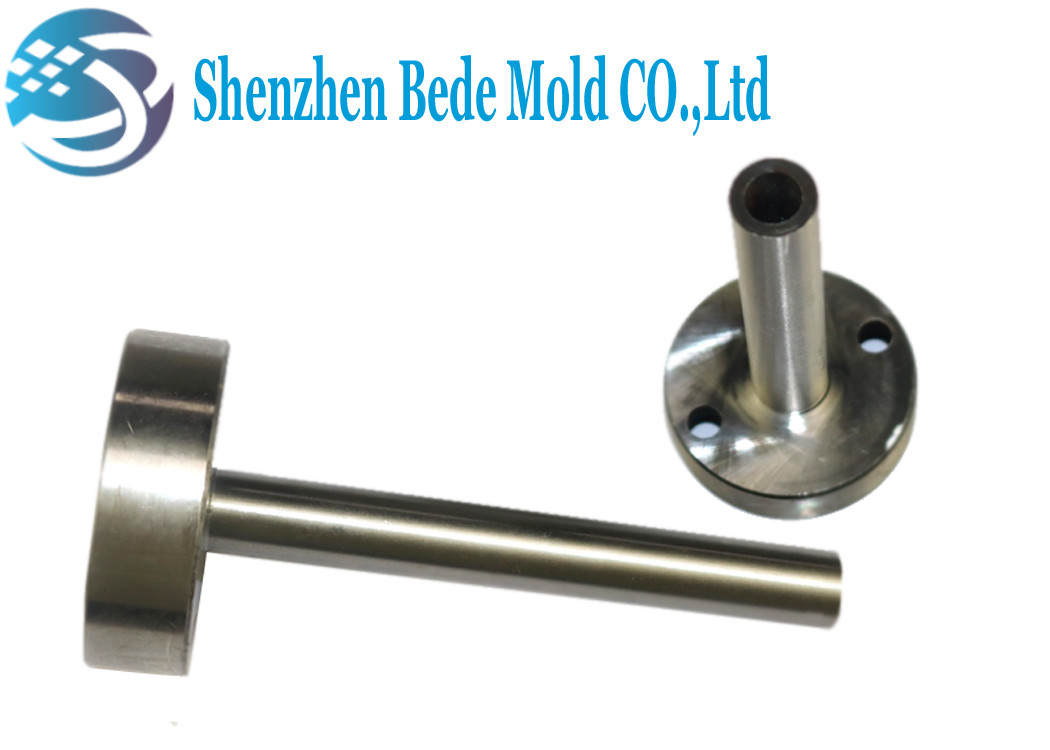

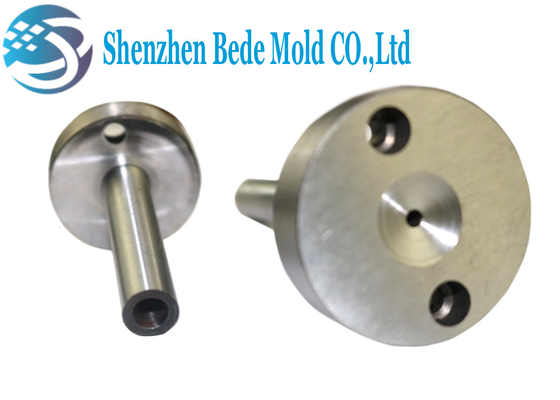

    The sprue bush is a part that allows plastic material to be injected from the nozzle into the interior of the mold. It is fixed to the mold with 2 bolts to prevent it from falling off due to the injection pressure. In order to prevent leakage of plastic material, the feed port is generally designed in an arc shape.

    Customized Precision Plastic Mold Sprue Bushing Hotwoek Die Steel SKD61 Materials

    Materials

      SKD61 hot work die steel can produce high-end and very durable sprue bushing, the hardness can reach 48~52HRC. The sprue bush made with SKD61 has the characteristics of high temperature resistance and durability, and the quality of the molded product is excellent.



    Quick Details



    materials  Hot die steels SKD61 Type  A
    Hardness HRC48°~52° Size φ2.5
    Customized  welcome Packing PE bags or customized



       The relationship between the size of the sprue sleeve and the tonnage of the injection molding machine is as follows. the types of plastics materials being injection molded have a littell  impact on them.



    Size of sprue sleeve φ2.5 φ3.0 φ3.5 φ4.0 φ4.5 φ5.0
    Tonnage of injection machine 25~80T 100~150T 160~200T 220~260T 300~350T 400~450T



    Customized Precision Plastic Mold Sprue Bushing Hotwoek Die Steel SKD61 Materials

    Size

        The dimensions of the custom product are shown below. Give us the value of D*H*T*L*SR*d*A, everything else, we will do it for you.



    Customized Precision Plastic Mold Sprue Bushing Hotwoek Die Steel SKD61 Materials

    ΦD ΦH ΦP T L SR Φd A
    12 0
    -0.009
    35 25 10 Customized 11,12,
    13,
    2.5, 3,
    3.5, 4,
    4.5, 5

    16 15
    20 0
    -0.011
    20
    16 50 36 10 11 12
    13 16
    20 0
    -0.013
    15
    25 20
