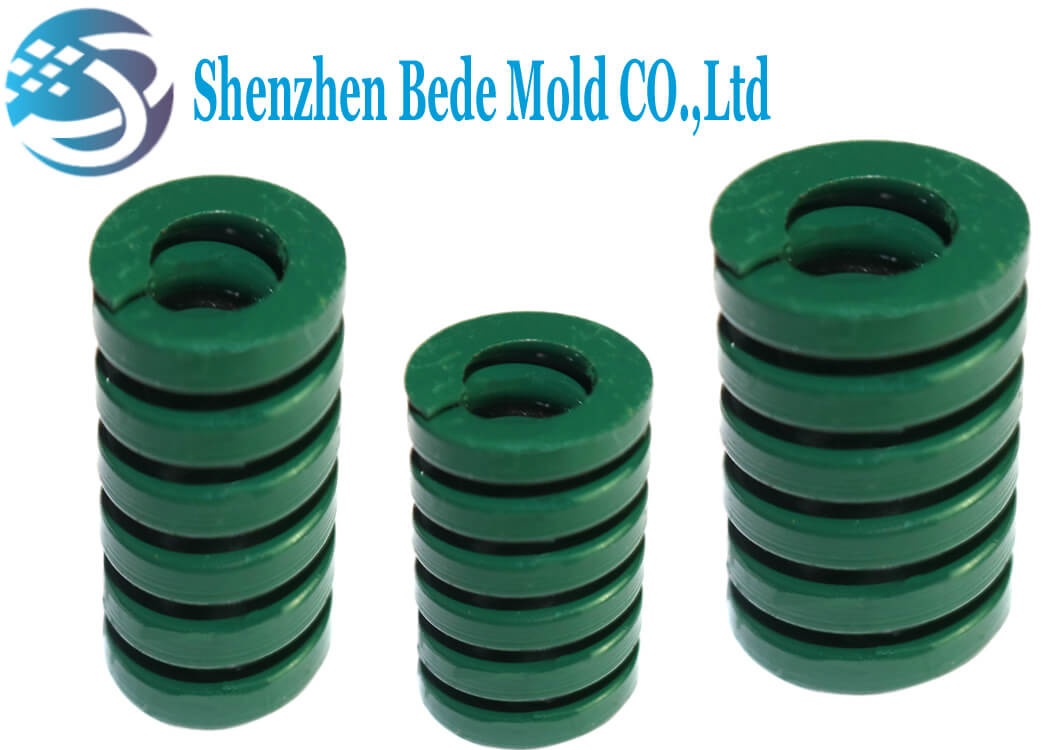

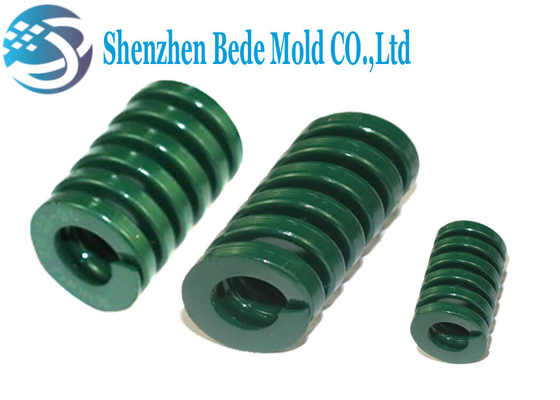

Mould And Die Compression Light Duty Die Springs For Precision Stamping Dies

Mould And Die Compression Light Duty Die Springs For Precision Stamping Dies

    • Mould And Die Compression Light Duty Die Springs For Precision Stamping Dies
    • Mould And Die Compression Light Duty Die Springs For Precision Stamping Dies
  • Mould And Die Compression Light Duty Die Springs For Precision Stamping Dies

    Product Details:

    Place of Origin: China
    Brand Name: BD
    Certification: RoHS
    Model Number: BD~s0000

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: PP bags and wood carton
    Delivery Time: 10~15 work days
    Payment Terms: Western Union, L/C, D/A, D/P, T/T
    Supply Ability: 120000~150000 pieces per month
    Contact Now
    Detailed Product Description
    Color: Green Material: Chromium Alloy Steel
    Size: All Size Of ISO10243 Packing: PE Bags Or Customized
    Service Life: Depending On The Compression Ratio Load: Light Load

    Light Load Die Set Springs Rectangle Mold Coil Springs Green Color ISO10243 International Standard

    Discraption
       Springs are widely used in stamping dies, metal die-casting dies, plastic molds and other elastic precision mechanical equipment, automobiles and other fields.
       The material of die spring is usually chromium alloy steel, because its characteristics of high temperature resistance, rigidity and long service life.
         According to ISO10243 standards, the color and load are as follows:

    Color yellow  red  blue Green
    Load Overweight  load heavy load Medium load light load



    Service life 3,000,000 1,500,000 200,000
    Compression ratio  25% 30% 40%



    Quick Details
       All of our springs are manufactured according to Japan JIS industrial standard, and customized size is welcome.


    materials chromium alloy steel Size ISO10243
    color green load light


       The load = elastic coefficient * compression, please contact us for more information.

    Size(mm) Elastic
    coefficient(N/mm)
    Compressed
    length(mm)
    Load(N)
    Outer diameter Inner diameter free length
    32 16 38 92.5 11.4 1055
    40 20 305 12.0 91.5 1373
    63 38 203 62.0 60.9

    3776

    Mould And Die Compression Light Duty Die Springs For Precision Stamping Dies
    Standard Size
    We have the following standard sizes of springs in stock, generally can be shipped within 3 working days, if it is customized , delivery time is generally 15-20 days.

     Outer diameter * inner diameter / mm

    10*5

    12.5*6.3

    16*8

    20*10

    25*12.5

    32*16

    40*20

    50*25
    Length / mm   25,32,38,44,51,64,76,89,102,115,127,139,152,178,203,254...



    Treatment
         The following processes are the treatment  to ensure product quality.

    Pressure treatment:
       The spring to do more than three times of pressure treatment, eliminating the internal stress before use, no spring deformation, shorten the breakage and other phenomena.

    Strengthened treatment:
       Spring surface strengthened shot peening treatment, improve the strength of stress concentration point, prolong the fatigue life of the spring.

    Surface treatment:
         Adopt advanced color electrophoretic paint process, conform to European SOS standard, make the product paint surface even, adhesion is stronger.

    Attention

         Usually, the proportion of service life depends on the spring and compressed, probably relations are as follows,3 points should be paid attention to prevent premature failure of the spring:
         1.Maintaining initial compression more than 1mm
         2. Prevent any other articles from the middle of the spring
         3. Keep vertical compression to prevent bending
