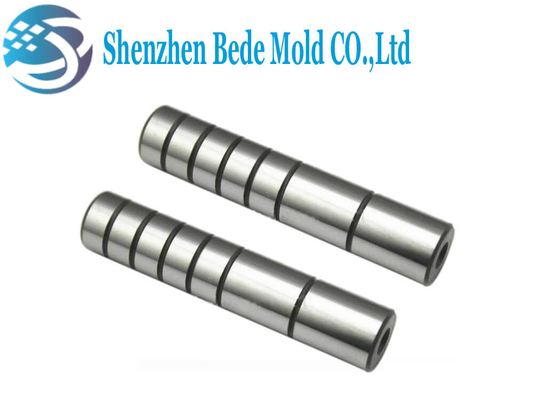

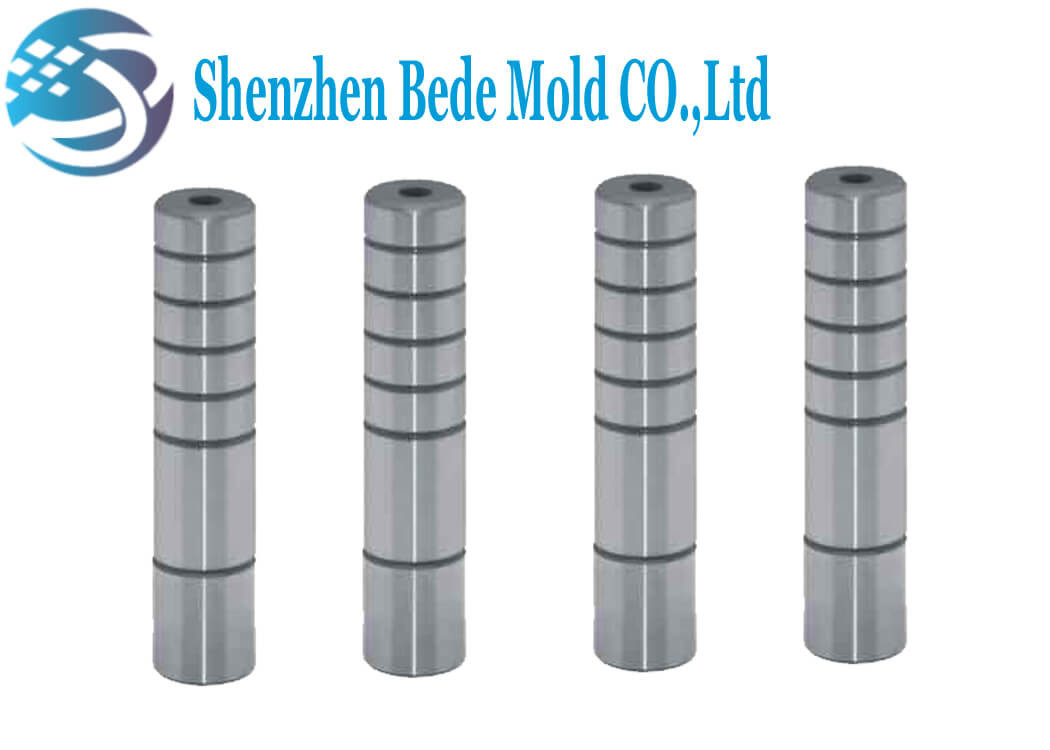

Straight Guide Pillar And Bush With Oil Groove / SGON For Plastic Injection Mold And Dies

Straight Guide Pillar And Bush With Oil Groove / SGON For Plastic Injection Mold And Dies

    • Straight Guide Pillar And Bush With Oil Groove / SGON For Plastic Injection Mold And Dies
    • Straight Guide Pillar And Bush With Oil Groove / SGON For Plastic Injection Mold And Dies
  • Straight Guide Pillar And Bush With Oil Groove / SGON For Plastic Injection Mold And Dies

    Product Details:

    Place of Origin: China
    Brand Name: BD
    Certification: RoHS
    Model Number: BD~G000

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiation
    Price: negotiation
    Packaging Details: PE bags with Antirust oil
    Payment Terms: Western Union, L/C, D/A, T/T, D/P
    Contact Now
    Detailed Product Description
    Materials: Bearing Steel Size: φ8~φ25
    Tolerance: 0.005 Hardness: HRC 60±2°
    Roughness: Ra 0.8~1.0 OEM / ODM: Welcome

    Customized Size and Materials Shoulder Guide Pins without Oil Groove / SGPH for Plastic Injection Mold and Dies

    Description
       Leader pins is a guide element used with components in the mold to ensure that the mold moves with precise positioning and guides the mold travel. It is usually cylindrical with shoulder and have some oil grooves.

    Materials
     The material of guide pins usually uses bearing steel, die steel and so on. The bearing steel SUJ2 greatly strengthens the durability and commutativity of the guide rod, So its application is the most extensive.
    Straight Guide Pillar And Bush With Oil Groove / SGON For Plastic Injection Mold And Dies
    Quick Details
       Because of the reason of usage, the guide pins needs smooth surface,requiring small cylindrical tolerances and low surface roughness.



    materials bearing steel Roughness Ra 0.8~1.0
    Size  φ8~φ25 Tolerance 0.005mm
    hardness HRC 58~62° ODM / OEM welcome


    Standard Size
       We have the following standard sizes of leader pins in stock, generally can be shipped within 3 working days, if customized, delivery time is generally 15-20 days. If there is an urgent requirement, please communicate with the seller in advance.


    D B R Dm5 L
    40 50 60 70 80 90 100 110 120 130 140
    8 10 1.0 8

    +0.024

    +0.015


    10 13 10
    13 16 1.5 13

    +0.029

    +0.018


    16 20 16
    20 25 2.0 20

    +0.035

    +0.022

    25 28 25


      Straight Guide Pillar And Bush With Oil Groove / SGON For Plastic Injection Mold And Dies
    Customized
        We offer our customers a variety of non-standard mold guide pins/ leader pillars. The materials can be selected from GCr15 and HUJ2, or other customer-specified materials.
       Production standards can be MISUMI, HASCO, DME, etc., or other specified standards.



    Packing and Shipping

       The leader pins are packaged with plastic bags with rust preventing oil, customized package is welcome.
    About the shipping, all the well-known express companies and ocean shipping can be selected, but in remote areas, we can only use EMS.
     Straight Guide Pillar And Bush With Oil Groove / SGON For Plastic Injection Mold And Dies
