Shenzhen Bede Mold Co., Ltd
One Stop Total Solution Supplier of Injection Mold and Stamping Dies
 |
| Place of Origin: | China |
| Brand Name: | BEDE |
| Certification: | ROSH |
| Model Number: | grub screws |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 1000 Per Box |
| Delivery Time: | 15-25 Work Days |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100K 1 Day |
| Size: | M3~M20 | Material: | Alloy Steel 45H |
|---|---|---|---|
| Length: | Customized | Color: | Black |
| Packing: | 1000pcs Per Box | Standard:: | DIN 914 |
| High Light: | hexagon head bolt,fully threaded hex bolts |
||

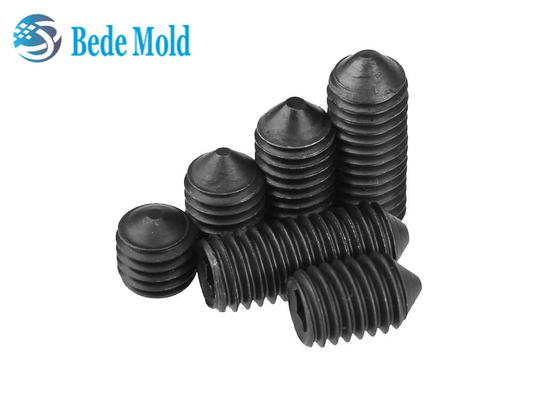

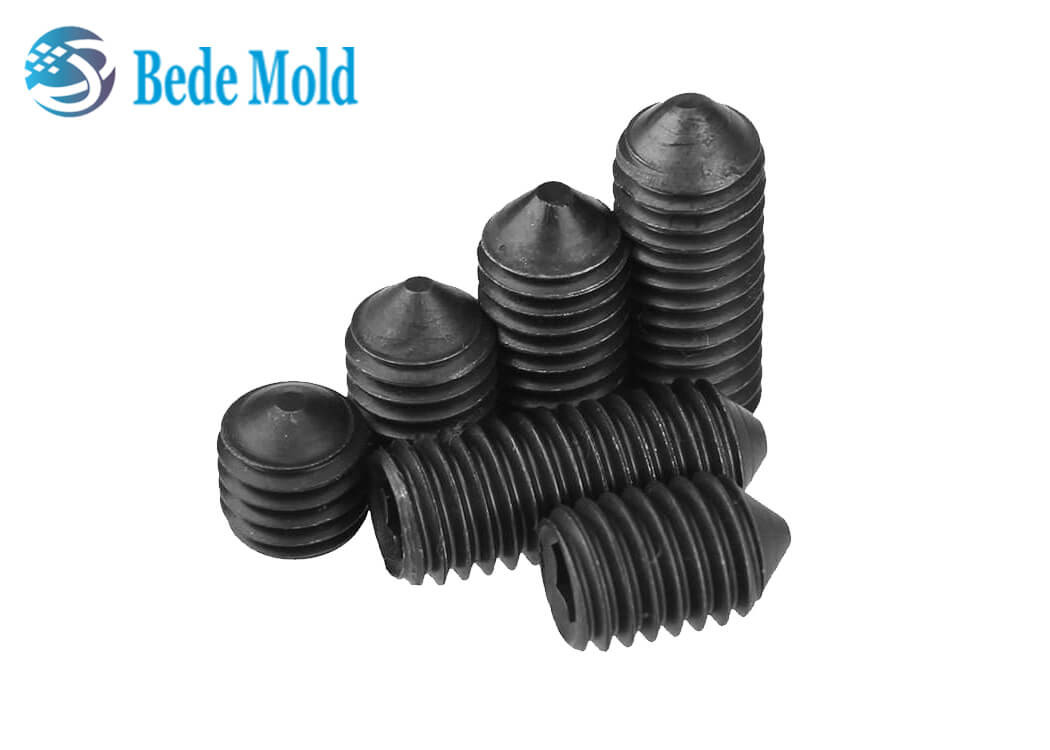

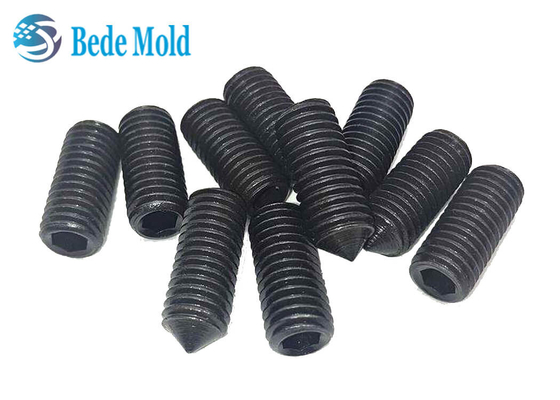

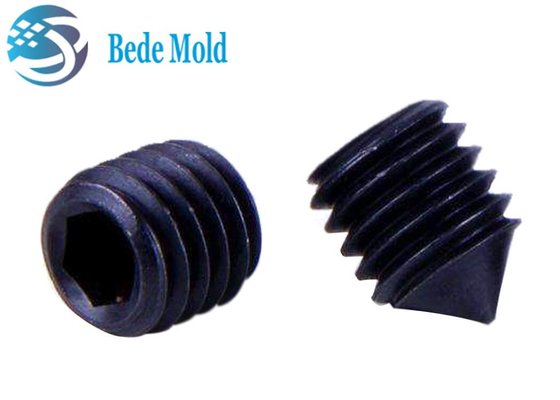

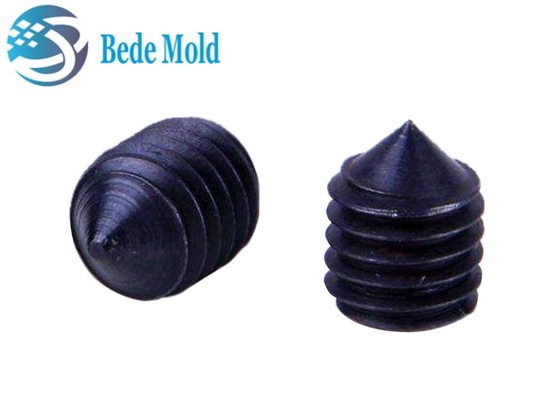

Cone Point Grub Screw Hex Socket Set Screws Materials Alloy Steel 45H Din 914 Black Color
Description
The relative position of the components is fixed, especially when used for axial positioning, and the screw head is not allowed to be exposed on the surface. It needs to be used with an Allen key.
Material of the cone point grub screws
Alloy steel 45H , Stainless Steel 304, Copper etc., according to customer requirements
Quick Details
| Size | M3-M20 | Thread type | Metric Fine |
| Materials | 33H / 45 H / SS 304 | Type | Flat point |
| customized | welcome | Packing | 1000pcs per Box |
Standard Size of the cone point grub screws
For the M3~M20 cone point grub screws, ,we have the following standard sizes in stock, generally can be shipped within 2 working days after payment, if customized, delivery time is generally 15-20 days. If there is an urgent need, please communicate with the seller in advance.
| D | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M16 | M20 | |
| P | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | |
| S | min | 1.52 | 2.02 | 2.52 | 3.02 | 4.02 | 5.02 | 6.02 | 8.025 | 10.25 |
| t | min | 2 | 2.5 | 3 | 3.5 | 5 | 6 | 8 | 10 | 12 |
| L | 2~60 mm | |||||||||
For the customized size, Tell us the values d*L*t*S as following picture, everything else will be done by us for you.
