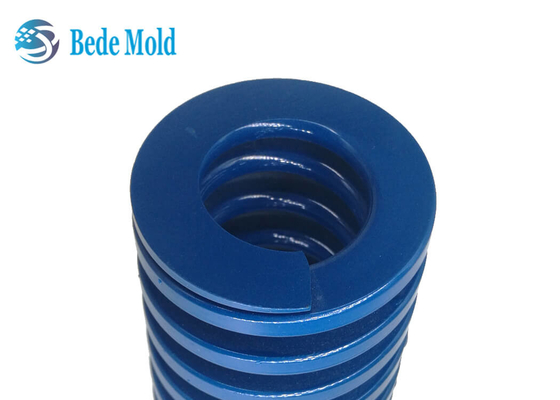

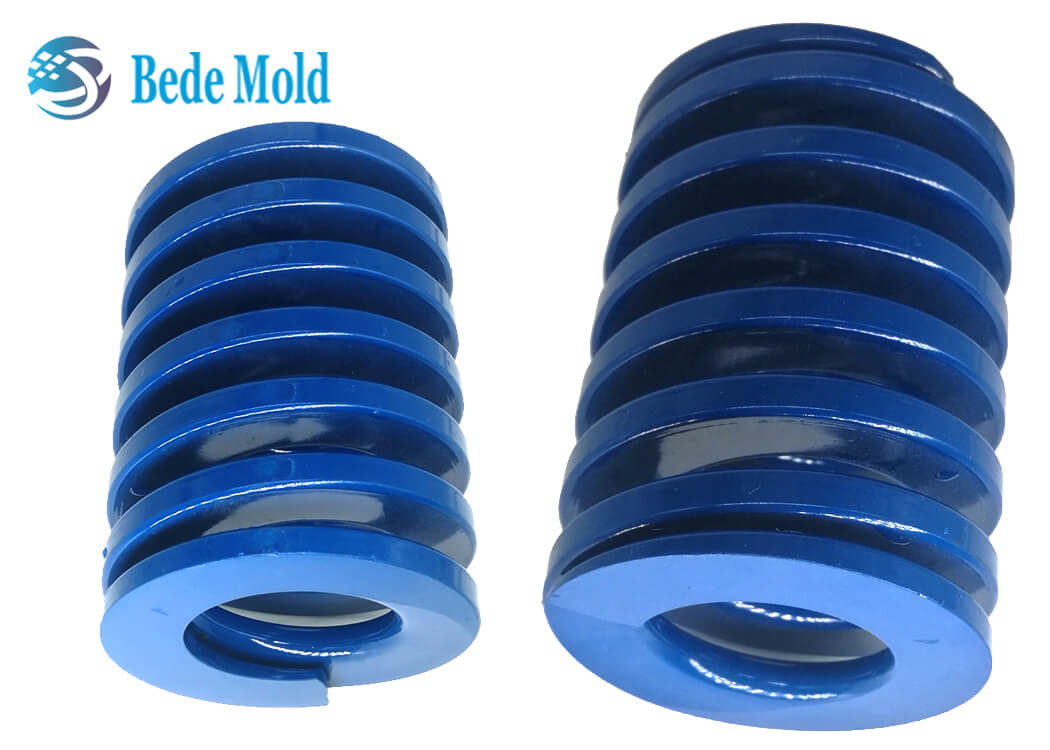

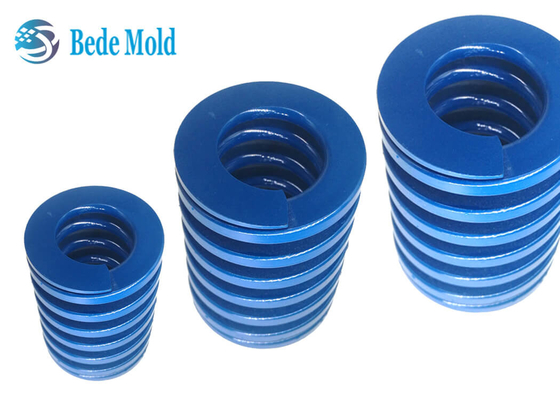

Light Load Stamping Die Spring 50CrVA Materails Outer Diameter 22mm TL Blue Color

Light Load Stamping Die Spring 50CrVA Materails Outer Diameter 22mm TL Blue Color

    • Light Load Stamping Die Spring 50CrVA Materails Outer Diameter 22mm TL Blue Color
    • Light Load Stamping Die Spring 50CrVA Materails Outer Diameter 22mm TL Blue Color
    • Light Load Stamping Die Spring 50CrVA Materails Outer Diameter 22mm TL Blue Color
  • Light Load Stamping Die Spring 50CrVA Materails Outer Diameter 22mm TL Blue Color

    Product Details:

    Place of Origin: China
    Brand Name: BD
    Certification: RoHS
    Model Number: BD~s0000

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pieces
    Price: 0.3~1.3 USD per piece
    Packaging Details: Plistic bags
    Delivery Time: within 2 days for retail, 10~15 days for wholesale
    Payment Terms: Western Union, L/C, D/A, D/P, T/T
    Supply Ability: 120000~150000 pieces per month
    Contact Now
    Detailed Product Description
    Color: Blue Material: 50CrVA
    Size: Outer Diameter 16 Mm Packing: PE Bags
    Service Life: Depending On The Compression Ratio Load: Lightest Load

    TL Blue Mold Spring Light Load Stamping Die Spring 50CrVA Materails Outer Diameter 22 mm

    Discraption

    • Mateials: Alloy steel 50CrVA
    • Load:  light Load  TL
    • Color: blue
    • Compression Ratio: 40% maximum
    • Outer Diameter: 22 mm, Inner diameter 11 mm
    • Length: 20~300 mm
    • Production standards: Japan JIS

    Light Load Stamping Die Spring 50CrVA Materails Outer Diameter 22mm TL Blue Color

    Load Color Compression Ratio %
    Lightest yellow 40 45 50
    Light blue 32 36 40
    Medium red 25.6 28.8 32
    Heavy green 19.2 21.6 24
    Overweight Brown 16 18 20
    Life length/Compression times 1,000,000 500,000 300,000


    Quick Details


    materials  Alloy steel  50CrVA  outer diameter 22 mm
    Compression Ratio  40% maxi.  inner diameter 11 mm
    color  blue color  load  light load TL


    Length and price


    Size Length / Millimeter
     Φ 22 20 25 30 35 40 45 50 55 60 65 70 75 80 90 100 125 150 175 200 250 300
    Price/USD 0.35 0.39 0.42 0.46 0.5 0.54 0.58 0.62 0.65 0.69 0.71 0.73 0.77 0.85 0.88 0.96 1.07 1.15 1.23 1.3 1.38



    Other size

    We have the following sizes on stock, and will ship within 2 days after receiving the payment, but the quantity of the stock changes at any time,   so please contact us for confirmation before purchase.

    OD Φmm 8 10 12 14 16 18 20 22 25 27 30 35 40 50 60 70
    ID Φmm 4 5 6 7 8 9 10 11 12.5 13.5 15 17 20 25 30 35
    Length mm 20~300 40~500


    Application

     Springs are widely used in stamping dies, metal die-casting dies, plastic molds and other elastic precision mechanical equipment, automobiles and other fields.

    Attention

         Usually, the proportion of service life depends on the spring and compressed, probably relations are as follows,3 points should be paid attention to prevent premature failure of the spring:
         1.Maintaining initial compression more than 1mm
         2. Prevent any other articles from the middle of the spring
         3. Keep vertical compression to prevent bending

     Light Load Stamping Die Spring 50CrVA Materails Outer Diameter 22mm TL Blue Color


    Order and payment
    • Please pay attention to our minimum order quantity.
    • All shipping terms are available, please contact us for shipping cost.
    • Prices can be negotiated for bulk order,
    • customized size is available

        About the payment, T/T, PayPal and WestUnion is welcome, for the bulk order , please feel free to contact us for whlesale price.
