Nylon 66 Mould Parting Locks Plastic Friction Puller Precision Mold Components

Nylon 66 Mould Parting Locks Plastic Friction Puller Precision Mold Components

  • Nylon 66 Mould Parting Locks Plastic Friction Puller Precision Mold Components
  • Nylon 66 Mould Parting Locks Plastic Friction Puller Precision Mold Components
Nylon 66 Mould Parting Locks Plastic Friction Puller Precision Mold Components
Product Details:
Place of Origin: China
Brand Name: BD
Certification: RoHS
Model Number: BDP0000
Payment & Shipping Terms:
Minimum Order Quantity: 500 pcs
Price: 0.17 USD per piece
Packaging Details: plastic box or PE bags
Payment Terms: D/A, L/C, D/P, T/T, Western Union
Supply Ability: 50000 pieces per week
Contact Now
Detailed Product Description
Materials 1: Nylon 66 Materials 2: Alloy Steel
Color: Yellow Size: φ20
Performance: Hardwearing,Wear-resistant ODM: Welcome
High Light:

parting locks mould

,

nylon parting lock

Nylon Materials Hardwearing Yellow Color φ18 Mould Parting Locks for Injection Molding



Description

   The nylon parting lock is a part that adjusts the friction between the mold and the nylon sleeve by locking the conical bolt. It consists of nylon sleeve and alloy steel bolts two parts, nylon sleeve color has white, yellow, red, blue four kinds.

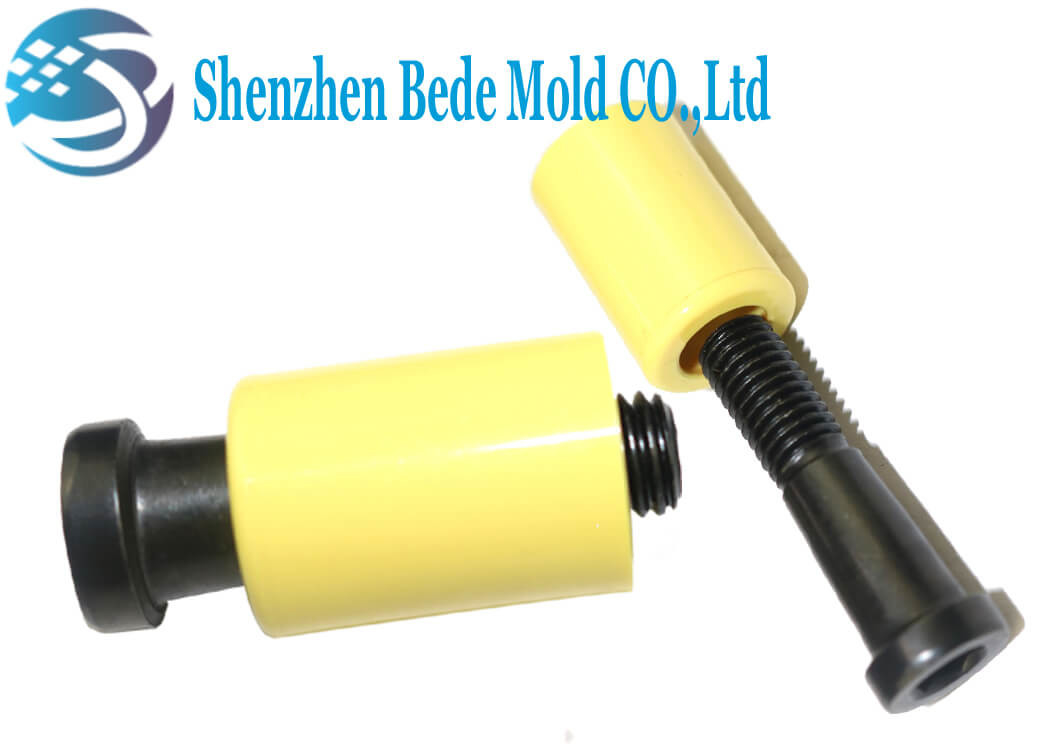

  Nylon 66 Mould Parting Locks Plastic Friction Puller Precision Mold Components 0

Mounting method

   Parting locks make the mold easy to take off. During the working process, the friction between the mold and resin is adjusted by the inclined screw, and the mould can be closed about 50,000 times by turning about 1/4 circle.

1. Embed the resin sleeve about 3 mm in the movable side of the die plate.
2. Create a hole on the fixed side of the die plate and finish it to reduce the internal surface roughness.
3. In order to maintain the mold parting locks’ durability, please make an R-chamfer instead of a C-chamfer on the inlet edge.
4. There is a PLBS bushing specially designed for being used with this parting lock can help to replace the R-chamfering and surface polishing processes. This kind of mold opening controller’s tapered bolt can be tightened or loosened to adjust the tension.



Quick Details

      The materials of the cone bolt is alloy steel, has excellent tensile strength and fatigue resistance, and the screw thread adopts international standards. The nylon sleeves are produced by PA66 and special additives, different colors have the different characteristics.



materials of bolt  alloy steel Color yellow
materials of sleeve PA-66 Size φ16
Performence  Wear-resistan Packing plastic box or PE bags





Standard Size

Size D H/mm L/mm N/mm M/mm
φ18 29 46 13 8
φ20 29 48 16 8   10

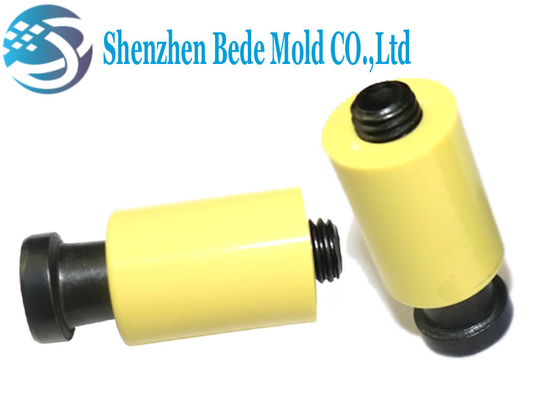

 Nylon 66 Mould Parting Locks Plastic Friction Puller Precision Mold Components 1

Attention

   1. The sleeve of parting locks are  used special nylon material, has good wear resistance and heat resistance, although the nylon sleeve heat resistance temperature is 150, but in the actual use process, because of the continuous effect of the locking stress of conical bolts, durability of the nylon sleeve will be reduced, so it general used below 80℃.

  2. Do NOT add lubricating oil on nylon sleeve.





Packing and Shipping



    The parting locks are packaged with plastic boxes or PE bags as the pictrue show,  and customized package is welcome.

     About the shipping, all the well-known express companies and ocean shipping can be selected, but in remote areas, we can only use EMS.

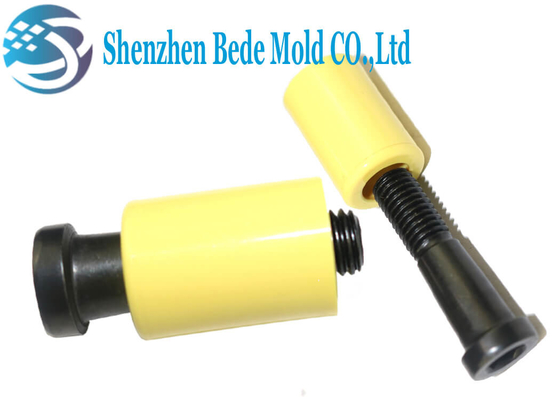

  Nylon 66 Mould Parting Locks Plastic Friction Puller Precision Mold Components 2
