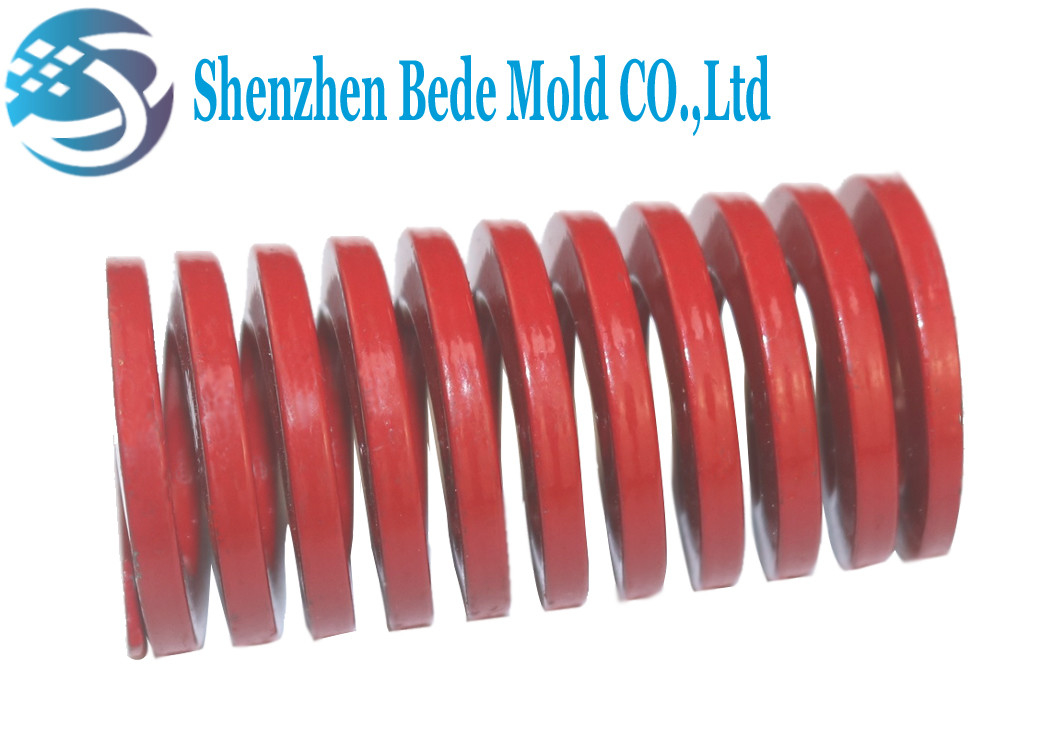

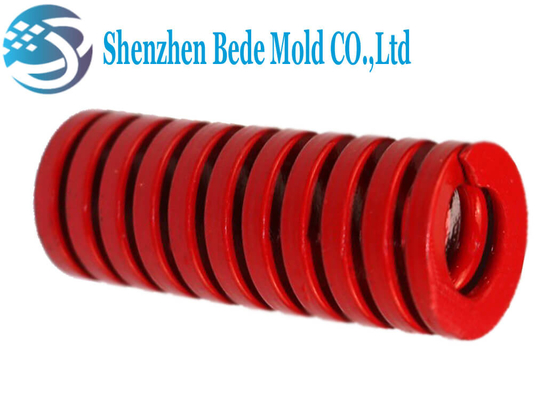

Metric JIS Standard Medium Load Die Springs For Injection Mold Custom Made

Metric JIS Standard Medium Load Die Springs For Injection Mold Custom Made

  • Metric JIS Standard Medium Load Die Springs For Injection Mold Custom Made
  • Metric JIS Standard Medium Load Die Springs For Injection Mold Custom Made
Metric JIS Standard Medium Load Die Springs For Injection Mold Custom Made
Product Details:
Place of Origin: China
Brand Name: BD
Certification: RoHS
Model Number: BD~s0000
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: PP bags and wood carton
Delivery Time: 10~15 work days
Payment Terms: Western Union, L/C, D/A, D/P, T/T
Supply Ability: 120000~150000 pieces per month
Contact Now
Detailed Product Description
Color: Red Material: Chromium Alloy Steel
Size: Japan JIS Packing: PE Bags Or Customized
Service Life: Depending On The Compression Ratio OEM / ODM: Welcome
High Light:

industrial coil springs

,

light duty die springs

Metric JIS Standard Medium Load Red Color Spring / Rectangle Springs for Injection Mold



Discraption

   Springs are widely used in stamping dies, metal die-casting dies, plastic molds and other elastic precision mechanical equipment, automobiles and other fields.

   The material of die spring is usually chromium alloy steel, because its characteristics of high temperature resistance, rigidity and long service life.



Load Compression Ratio % Color
Lighter 40 45 50 yellow
Light 32 36 40 blue
Medium 25.6 28.8 32 red
Heavy 19.2 21.6 24 Hreen
Overweight 16 18 20 Brown
Life length/Compression times 1000000 500000 300000

Quick Details

   All of our springs are manufactured according to Japan JIS industrial standard, and customized size is welcome.



materials chromium alloy steel Size Japan JIS
color red load  Medium

Metric JIS Standard Medium Load Die Springs For Injection Mold Custom Made 0

 Compression and load

     The maximum compression of this series springs is the free length*38%. Load = elastic coefficient * compression, please DO NOT over the maximum compression. For more information,you can contact us at any time.



Size(mm) Elastic
coefficient(KgF/mm)
Compressed
length(mm)
Load(Kgf)
Outer diameter Inner diameter free length
50 25 100 15.62 32 500
60 30 100 22.5 32 720
40 20 100 10.0 32 320



Standard Size

We have the following standard sizes of springs in stock, generally can be shipped within 3 working days, if it is customized , delivery time is generally 15-20 days.

External diameter / mm 8 10 12 14 16 18 20 22 25 27 30 35 40 50 60



70






Treatment

     The following processes are the treatment  to ensure product quality.



Pressure treatment:

   The spring to do more than three times of pressure treatment, eliminating the internal stress before use, no spring deformation, shorten the breakage and other phenomena.



Strengthened treatment:

   Spring surface strengthened shot peening treatment, improve the strength of stress concentration point, prolong the fatigue life of the spring.



Surface treatment:

     Adopt advanced color electrophoretic paint process, conform to European SOS standard, make the product paint surface even, adhesion is stronger.



Attention

     Usually, the proportion of service life depends on the spring and compressed, probably relations are as follows,3 points should be paid attention to prevent premature failure of the spring:
     1.Maintaining initial compression more than 1mm
     2. Prevent any other articles from the middle of the spring
     3. Keep vertical compression to prevent bending
