Stamping Dies Angular Pins Guide Pillar And Bush Plastic Mould Components

Stamping Dies Angular Pins Guide Pillar And Bush Plastic Mould Components

  • Stamping Dies Angular Pins Guide Pillar And Bush Plastic Mould Components
  • Stamping Dies Angular Pins Guide Pillar And Bush Plastic Mould Components
Stamping Dies Angular Pins Guide Pillar And Bush Plastic Mould Components
Product Details:
Place of Origin: China
Brand Name: BD
Certification: RoHS
Model Number: BD~G000
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: PE bags with Antirust oil
Payment Terms: Western Union, L/C, D/A, T/T, D/P
Contact Now
Detailed Product Description
Materials: Bearing Steel Size: φ8~φ25
Tolerance: 0.005 Hardness: HRC 58~62°
Roughness: Ra 0.8~1.0 OEM / ODM: Welcome
High Light:

leader pins and bushings

,

guide pillar and bush

SUJ2 Materials Loading and Nnloading Type Angular Pins with Oil Groove / SGOR for Stamping Dies


Description
   Leader pins is a guide element used with components in the mold to ensure that the mold moves with precise positioning and guides the mold travel. It is usually cylindrical with shoulder and have some oil grooves.

Materials
 The material of guide pins usually uses bearing steel, die steel and so on. The bearing steel SUJ2 greatly strengthens the durability and commutativity of the guide rod, So its application is the most extensive.

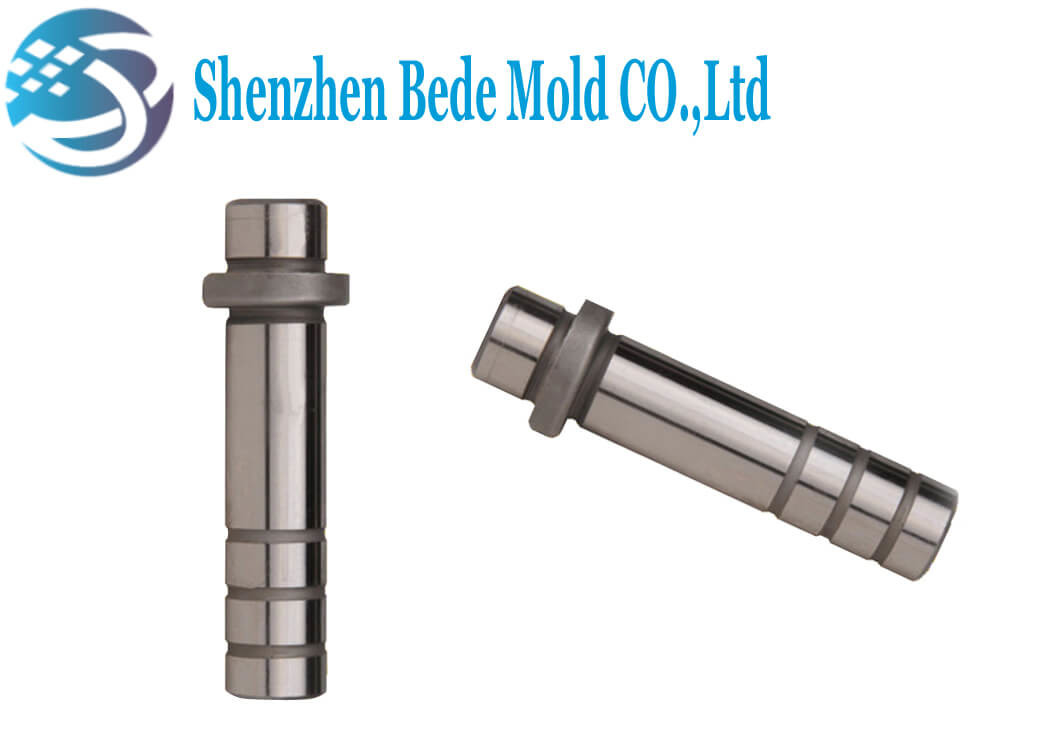

Stamping Dies Angular Pins Guide Pillar And Bush Plastic Mould Components 0
Quick Details
   Because of the reason of usage, the guide pins needs smooth surface,requiring small cylindrical tolerances and low surface roughness.

materials bearing steel Roughness Ra 0.8~1.0
Size  φ8~φ25 Tolerance 0.005mm
hardness HRC 58~62° ODM / OEM welcome


Standard Size
   We have the following standard sizes of leader pins in stock, generally can be shipped within 3 working days, if customized, delivery time is generally 15-20 days.

   If there is an urgent requirement, please communicate with the seller in advance.


D B R D1 M*l L
40 50 60 70 80 90 100 110 120
8 8 1.0 13 M5*12
10 16
13 10 1.5 20 M6*15
16 23
20 13 2.0 27 M8*20
25 16 32


Customized
    We offer our customers a variety of non-standard mold guide pins/ leader pillars. The materials can be selected from GCr15 and HUJ2, or other customer-specified materials.
   Production standards can be MISUMI, HASCO, DME, etc., or other specified standards.

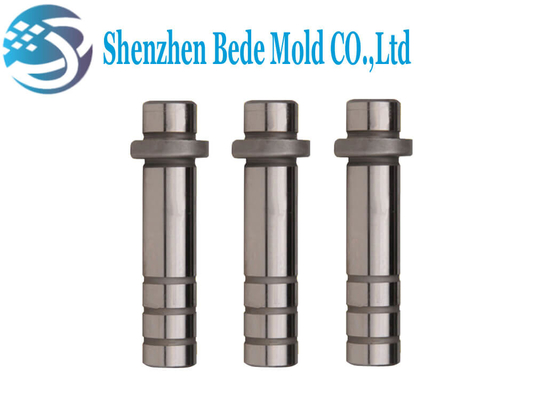

 Stamping Dies Angular Pins Guide Pillar And Bush Plastic Mould Components 1

Packing and Shipping

   The leader pins are packaged with plastic bags with rust preventing oil, customized package is welcome.
  About the shipping, all the well-known express companies and ocean shipping can be selected, but in remote areas, we can only use EMS.
