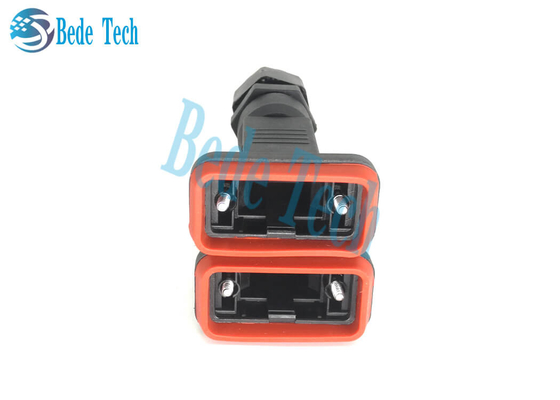

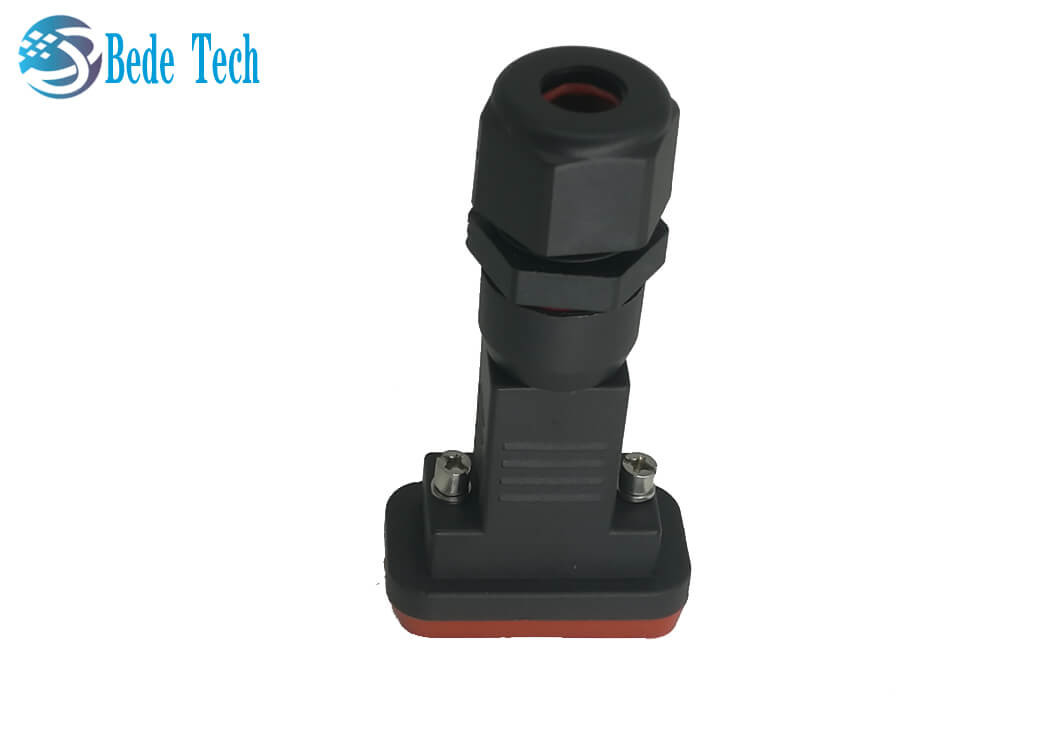

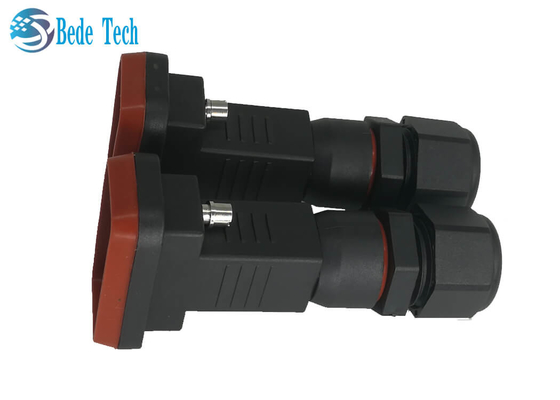

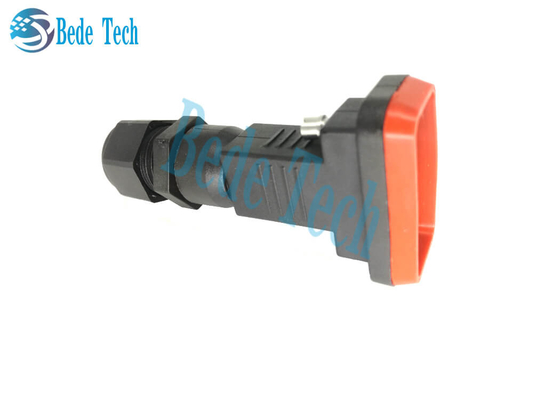

Plastic AISG Connector Cable Assembly D-SUB IP68 PA66 UL94V-0 Black Color

Plastic AISG Connector Cable Assembly D-SUB IP68 PA66 UL94V-0 Black Color

  • Plastic AISG Connector Cable Assembly D-SUB IP68 PA66 UL94V-0 Black Color
  • Plastic AISG Connector Cable Assembly D-SUB IP68 PA66 UL94V-0 Black Color
  • Plastic AISG Connector Cable Assembly D-SUB IP68 PA66 UL94V-0 Black Color
  • Plastic AISG Connector Cable Assembly D-SUB IP68 PA66 UL94V-0 Black Color
Plastic AISG Connector Cable Assembly D-SUB IP68 PA66 UL94V-0 Black Color
Product Details:
Place of Origin: China
Brand Name: BEDE
Certification: UL CE ROHS
Model Number: DB 9Pin
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: $0.99
Packaging Details: 1000 pcs in a carton, size 480*410*410mm, G.W. 25KG.
Delivery Time: 2 days for retail, 20 days for wholesale
Payment Terms: Western Union , T/T ,Papay
Supply Ability: 50000/week
Contact Now
Detailed Product Description
Model Number:: BEDE-AISG-DB9p Type: Plastic Connector
Protection Level: IP 67/68 Function: Waterproof
Material: PA66 UL94V-0 Colour: Black
Size: 41mm*22mm*79mm Operating Temperature: -55℃~125℃
High Light:

control cable assembly

,

control cable connectors

       AISG Cable DB Waterproof Connector ESC Antenna Control Line DB9 IP68 Waterpro Of PA66 UL 94V0 Plastic Connector

1.Model:DB 9Pin,
2Material:PA66 UL94V-0
3Size:41mm*22mm*79mm
4. Waterproof :IP67/68

Click To Download DB-TDS.pdf

Plastic AISG Connector Cable Assembly D-SUB IP68 PA66 UL94V-0 Black Color 0

Model specification

Name Factory Model Certification
DB15 Connector BEDE BEDE-AISG-DB9 RoHS



Parameter

Name Material Plating
Plastic connector PA66 UL94V-0 /
Size 41mm*22mm*79mm /
Pin hole brass 1.27um Ni bottom, gold plated contact 0.02-0.03um, fogging in the tail area Tin 2.5um

installation Screw
Size 30.8(A)*25(B)*12.5(C)*2.29(D)
Pins No. 9 PIN
Button /
Operating temperature  -55℃~125℃
Rated voltage  300V
Rated current  5A
Withstand voltage  1000VAC,60s,1mA
Insulation resistance ≥5000MΩ
Contact resistance ≤30mΩ
Contact form  welding
Lifetime 500 cycles
Storage conditions Normal temperature and humidity, no corrosive gas environment
Storage time 5 years



Application
Connect the AISG RET control cable to provide data and power to the RET system components.
The ATCB Series Control Cables are used to feed data and power from the controller to RET (Remote Electrical Tilt) system

components that can be connected together to meet the required length.

Plastic AISG Connector Cable Assembly D-SUB IP68 PA66 UL94V-0 Black Color 1
