Shenzhen Bede Mold Co., Ltd
One Stop Total Solution Supplier of Injection Mold and Stamping Dies
 |
| Place of Origin: | China |
| Brand Name: | BEDE |
| Certification: | UL CE ROHS |
| Model Number: | DB 9Pin |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | $0.99 |
| Packaging Details: | 1000 pcs in a carton, size 480*410*410mm, G.W. 25KG. |
| Delivery Time: | 2 days for retail, 20 days for wholesale |
| Payment Terms: | Western Union , T/T ,Papay |
| Supply Ability: | 20000/week |
| Model Number:: | BEDE-AISG-DB9 | Type: | Plastic Connector |
|---|---|---|---|
| Protection Level: | IP 67/68 | Function: | Waterproof |
| Material: | PA66 UL94V-0 | Colour: | Black |
| High Light: | aisg cable,control cable assembly |
||

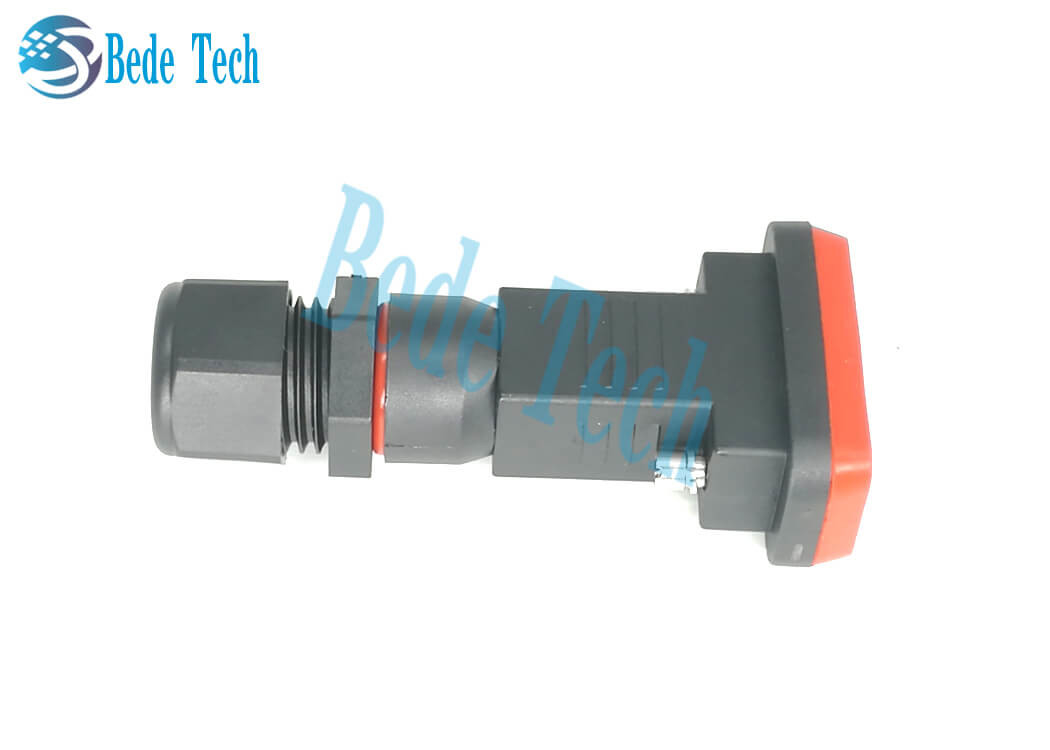

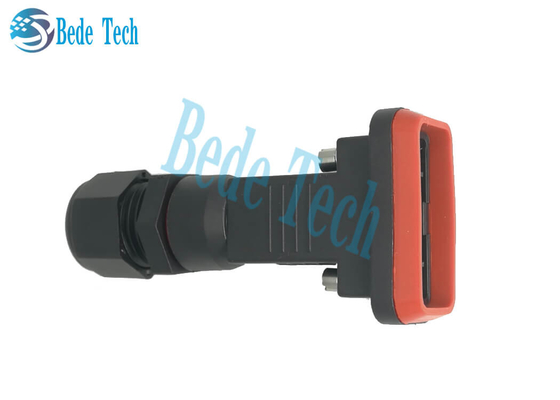

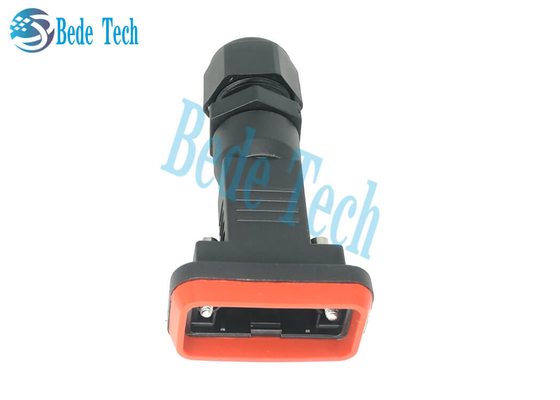

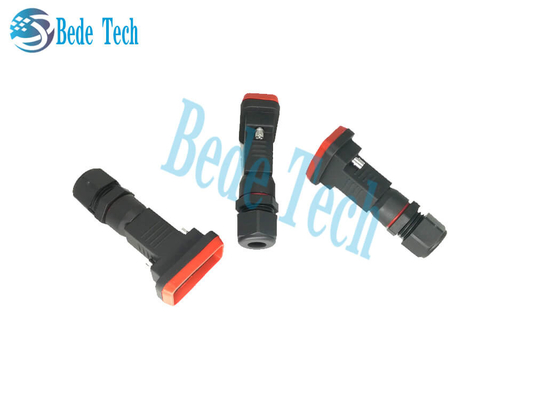

D-SUB Waterproof Connector AISG Antenna Control Cable Waterproof Plug AISG Cable Connector
Description
Waterproof rating IP68/67
Available in 9 or 15 PIN sizes
Comply with RoHS and REACH standards
Rated voltage: 300V
Insulation resistance: ≥1000MΩ
Rated current: 5A
Contact resistance: ≤10mΩ
Ambient temperature: -25°C~ + 70°C
Connector specifications
Contact: brass plated
Insert: PBT + GF
Coupling nut/screw: brass nickel plated
Model specification
| Name | Factory | Model | Standards |
| DB9 Connector | BEDE | BEDE-AISG-DB9 | RoHS |
Parameter
| Name | Material | Plating | |
| Plastic connector | PA66 UL94V-0 | / | |
| Size | 4.1cm*2.2cm*25cm | / | |
| Pinhole | brass | 1.27um Ni bottom, gold plated contact 0.02-0.03um, fogging in the tail area Tin 2.5um | |
| installation | Screw | ||
| Size | 30.8(A)*25(B)*12.5(C)*2.29(D) | ||
| Pins No. | 15 | ||
| Button | / | ||
| Operating temperature | -55℃～125℃ | ||
| Rated voltage | / | ||
| Rated current | 3A | ||
| Withstand voltage | 1000VAC,60s,1mA | ||
| Insulation resistance | ≥5000MΩ | ||
| Contact resistance | ≤30mΩ | ||
| Contact form | welding | ||
| Lifetime | 500 cycles | ||
| Storage conditions | Normal temperature and humidity, no corrosive gas environment | ||
| Storage time | 5 years | ||
