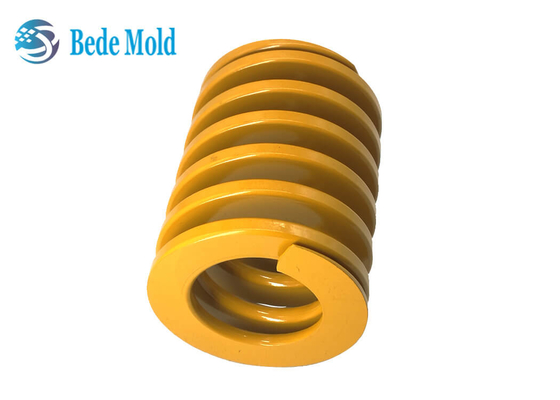

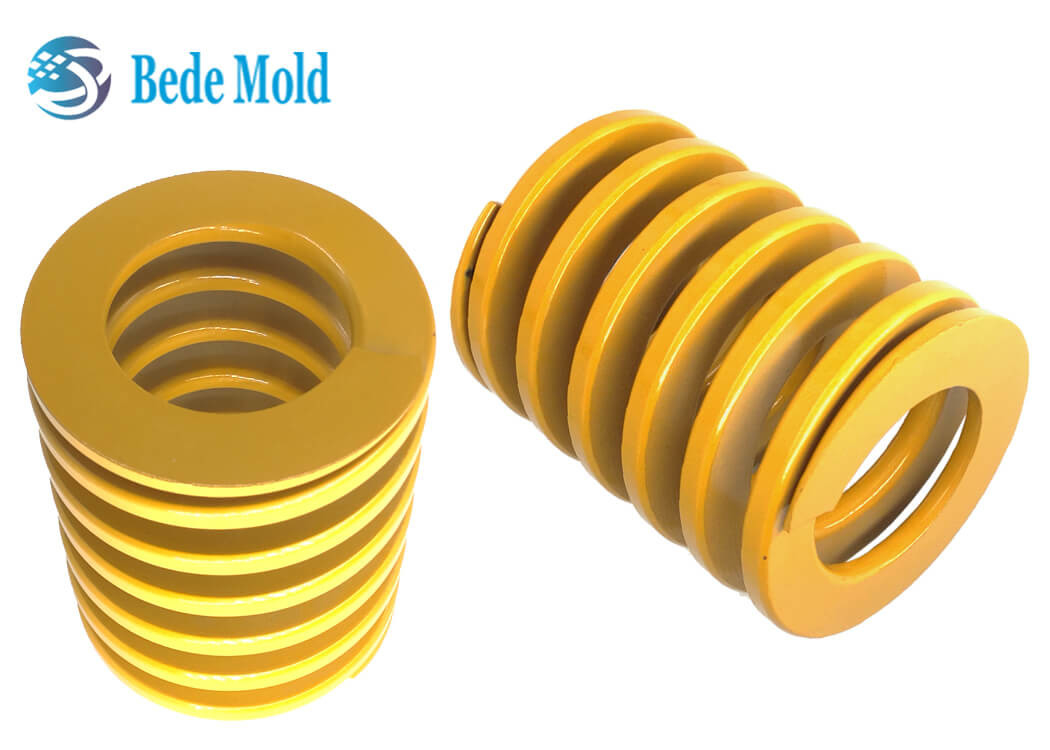

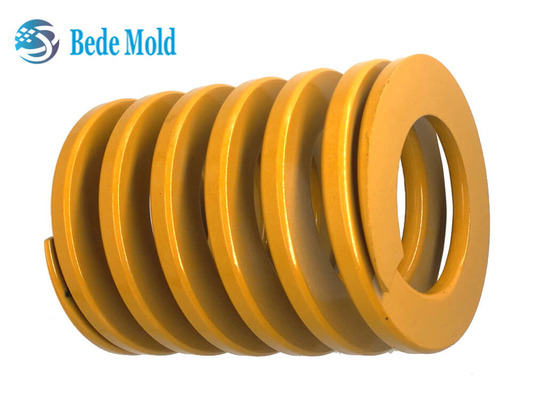

TF Rectangle Injection Mold Spring Lightest Load Yellow Color OD 40mm RoHS Approval

Product Details:

Place of Origin:	China
Brand Name:	BD
Certification:	RoHS
Model Number:	BD~s0000

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	0.17~1.80 USD per piece
Packaging Details:	Plistic bags
Delivery Time:	within 2 days for retail, 10~15 days for wholesale
Payment Terms:	Western Union, L/C, D/A, D/P, T/T
Supply Ability:	120000~150000 pieces per month

Contact Now

Detailed Product Description

Color:	Yellow	Material:	65Mn
Load:	Lightest Load / TF	Size:	Outer Diameter 40 Mm
Length:	40~300 Mm	Packing:	PE Bags
High Light:	light duty die springs , industrial compression spring

OD 40 mm TF Rectangle Spring Injection Mold Spring Lightest Load Yellow Color 65Mn Materail

Discraption

Mateials: Spring steel 65Mn
Load: Lightest / TF
Color: yellow
Compression Ratio: 50% maximum
Outer Diameter: 40 mm, Inner diameter 20 mm
Length: 40~300 mm
Production standards: Japan JIS

Load	Color	Compression Ratio %
Lightest	yellow	40	45	50
Light	blue	32	36	40
Medium	red	25.6	28.8	32
Heavy	green	19.2	21.6	24
Extra Heavy	Brown	16	18	20
Life length/Compression times		1,000,000	500,000	300,000

Quick Details

materials	Spring steel 65Mn	outer diameter	40mm
Compression Ratio	50% maxi.	inner diameter	20 mm
Length	40~300 mm	load	Lightest load / TF

Length and price

Size	Length / Millimeter
Φ 40	40	45	50	55	60	65	70	75	80	90
Price/USD	0.47	0.5	0.51	0.53	0.53	0.56	0.58	0.58	0.61	0.61

Size	Length / Millimeter
Φ 40	100	125	150	175	200	250	275	300
Price/USD	0.63	0.73	0.88	1.00	1.20	1.50	1.54	1.80

Other size

We have the following sizes on stock, and will ship within 2 days after receiving the payment, but the quantity of the stock changes at any time, so please contact us for confirmation before purchase.

OD Φmm	8	10	12	14	16	18	20	22	25	27	30	35	40	50	60
ID Φmm	4	5	6	7	8	9	10	11	12.5	13.5	15	17	20	25	30
Length mm	20~300													50~300

Application
Springs are widely used in stamping dies, metal die-casting dies, plastic molds and other elastic precision mechanical equipment, automobiles and other fields.

Attention

Usually, the proportion of service life depends on the spring and compressed, probably relations are as follows,3 points should be paid attention to prevent premature failure of the spring:

1.Maintaining initial compression more than 1mm

2. Prevent any other articles from the middle of the spring

3. Keep vertical compression to prevent bending
