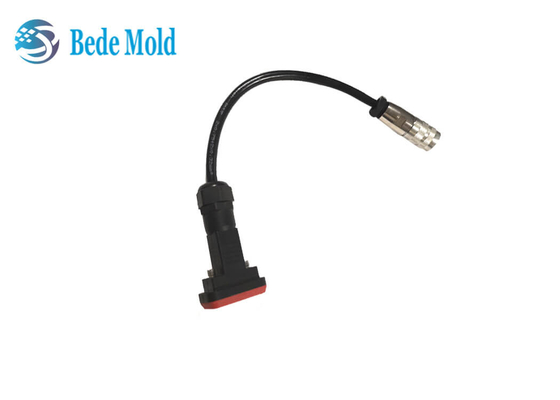

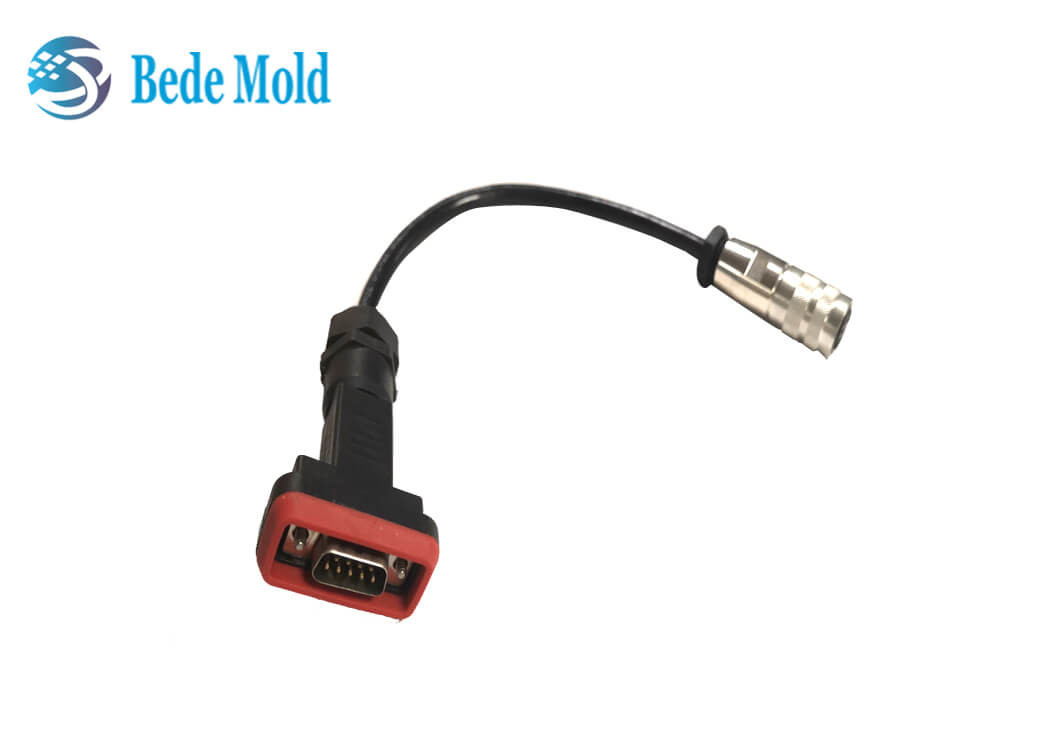

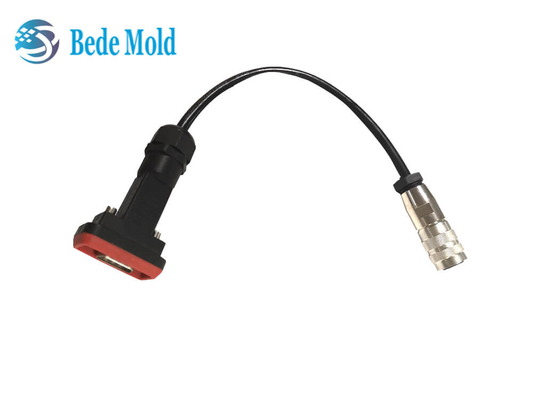

RET Aisg Cable Waterproof AISG-DB9 Male Electric Adjustable Antenna Control Line

RET Aisg Cable Waterproof AISG-DB9 Male Electric Adjustable Antenna Control Line

  • RET Aisg Cable Waterproof AISG-DB9 Male Electric Adjustable Antenna Control Line
  • RET Aisg Cable Waterproof AISG-DB9 Male Electric Adjustable Antenna Control Line
  • RET Aisg Cable Waterproof AISG-DB9 Male Electric Adjustable Antenna Control Line
RET Aisg Cable Waterproof AISG-DB9 Male Electric Adjustable Antenna Control Line
Product Details:
Place of Origin: China
Brand Name: BEDE
Certification: UL CE ROHS
Model Number: DB 9 Pin
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: $5
Packaging Details: 100 pcs in a carton, size 480*410*410mm, G.W. 25KG.
Delivery Time: 2 days for retail, 20 days for wholesale
Payment Terms: Western Union , T/T ,Papay
Supply Ability: 25000/week
Contact Now
Detailed Product Description
Model Number:: BEDE-AISG-DB15 Protection Level: IP 67/68
Lifetime: 500 Cycles Rated Voltage: 300V
Rated Current: 5A Sheath Material: PVC (anti-UV)
Fire Rating: UL94-V0 Colour: Black
High Light:

control cable assembly

,

control cable connectors

     Aisg Cable RET Control Cabler 3M D-USB 9 Waterproof IP67 Electric adjustable antenna control Cable

Description

Cable technical requirements

1, Rated voltage: 300V

2, Preparation coverage: coverage rate ≥ 85%

3, Data conductor type: 0.32mm (24AWG) twisted pair

Data conductor type: 0.75mm (20AWG) stranded strand

In the case of meeting the electrical connection requirements, the wire color and the number of wires are not mandatory.

Wire size see product specifications

Shielding material quality: magnesium alloy

Sheath material: PVC (anti-UV)

Colour: Black

4, Requires anti-UV standard: UL1581 1000 hours

5, The appearance of UV 1000 test does not appear white, no cracks, peeling, bumps and other undesirable phenomena

Environmental requirements

Temperature cycle: -40 ° C +85 ° C (IEC 60068-1)

Fire rating: UL94-V0

Neutral salt spray: 168H    AISG+DB Cable-TDS.pdf

RET Aisg Cable Waterproof AISG-DB9 Male Electric Adjustable Antenna Control Line 0

AISG Circular Connector Joint Requirements

NO Name Material Plating
1 Outer Casing Brass(HPb59/H62) Nickel plating 2μm (Min)
2 Insulator PBT/PET /
3 Contact Copper alloy QSn/stamped structure tail welding Gold plated 0.1μm, (contact area, head 1.5mm


Application

1, Is a waterproof D-SUB plug and AISG socket connector connected to the RET cable.
2, Use a screw to fix the coupling,
3, In line with DIN45326 standard.
4, In line with IP 67 protection level.
5. The main applications of AISG waterproof connectors include industrial control, data processing, instrumentation,
    medical equipment,  telecommunications networks and equipment, as well as outdoor and marine applications.
6, Cable connectors are mainly used for 3G, 4G, communication base stations.
7, Customizable brand, OEM / ODM
