Shenzhen Bede Mold Co., Ltd
One Stop Total Solution Supplier of Injection Mold and Stamping Dies
 |
| Place of Origin: | China |
| Brand Name: | BEDE |
| Certification: | UL CE ROHS |
| Model Number: | DB 15 Pin |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | $15.9 |
| Packaging Details: | 100 pcs in a carton, size 480*410*410mm, G.W. 25KG. |
| Delivery Time: | 2 days for retail, 20 days for wholesale |
| Payment Terms: | Western Union , T/T ,Papay |
| Supply Ability: | 25000/week |
| Model Number:: | BEDE-AISG-DB15 | Protection Level: | IP 67/68 |
|---|---|---|---|
| Lifetime: | 500 Cycles | Rated Voltage: | 300V |
| Rated Current: | 5A | Sheath Material: | PVC (anti-UV) |
| Fire Rating: | UL94-V0 | Certificate:: | CE /RoHS/IP67 |
| Contact Materials:: | Brass With Gold Plated | Termination:: | Solder |
| High Light: | control cable assembly,control cable connectors |
||

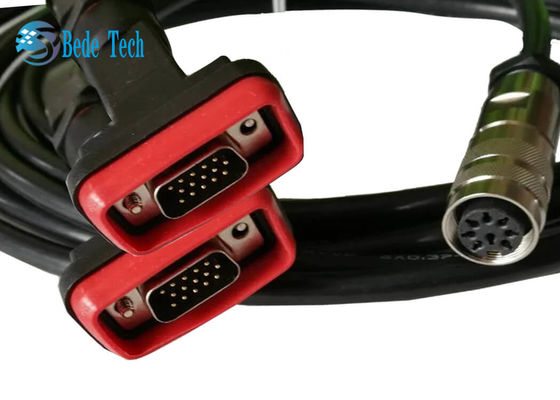

Control Cable RET AISG Cable Wiht Connectors D-Sub 15 Pin Male Machined Contacts To C091 AISG M10 Cable
Description
Product description
1. The Control Cable Aisg cable has a sturdy metal casing at one end and an IP67 waterproof connector at the other end.
2. This rugged range of DIN connectors is the ideal solution to ensure power and signal connections are not compromised in harsh environments and industrial applications.
3, Binder eries 423, 723 and 425 series high quality AISG equivalent connector is a rugged high performance circular connector with excellent EMI shielding and IP67. Suitable for demanding industrial and commercial applications. Panel mount sockets are available in a variety of styles and mounting styles.
AISG+DB Cable-TDS.pdf
Cable technical requirements
1, Rated voltage: 300V
2, Preparation coverage: coverage ≥ 85%
3, Data wire type: 0.32mm (24AWG) twisted pair
Data conductor type: 0.75mm (20AWG) stranded wire
Wire color and wire count are not mandatory when electrical connection requirements are met.
Wire size see product specifications
Shielding material: magnesium alloy
Sheath material: PVC (UV protection)
Colour: Black
4, Requires anti-UV standard: UL1581 1000 hours
5, The appearance of UV 1000 test will not appear white, no cracks, peeling, bumps and other undesirable phenomena
Environmental requirements
Temperature cycle: -40 ° C + 85 ° C (IEC 60068-1)
Fire rating: UL94-V0
Neutral salt spray: 168H
AISG Circular Connector Joint Requirements
| NO | Name | Material | Plating |
| 1 | Outer Casing | Brass(HPb59/H62) | Nickel plating 2μm (Min) |
| 2 | Insulator | PBT/PET | / |
| 3 | Contact | Copper alloy QSn/stamped structure tail welding | Gold plated 0.1μm, (contact area, head 1.5mm |
Application
