SUJ2 Standard Mould Parts Guide Pillar And Bush High Lubrication Low Tolerance

SUJ2 Standard Mould Parts Guide Pillar And Bush High Lubrication Low Tolerance

    • SUJ2 Standard Mould Parts Guide Pillar And Bush High Lubrication Low Tolerance
    • SUJ2 Standard Mould Parts Guide Pillar And Bush High Lubrication Low Tolerance
    • SUJ2 Standard Mould Parts Guide Pillar And Bush High Lubrication Low Tolerance
  • SUJ2 Standard Mould Parts Guide Pillar And Bush High Lubrication Low Tolerance

    Product Details:

    Place of Origin: China
    Brand Name: BD
    Certification: RoHS
    Model Number: BD~G000

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiation
    Price: negotiation
    Payment Terms: Western Union, L/C, D/A, T/T, D/P
    Contact Now
    Detailed Product Description
    Materials: Bearing Steel, Die Steel Size: Customized And Standard
    Tolerance: 0.005 Hardness: HRC 50~55°
    Roughness: Ra 0.8~1.0 OEM / ODM: Welcome

    High Lubrication Low Tolerance SUJ2 Materials Leader Pin / Guide Rod for Plastic Injection Mold



    Description

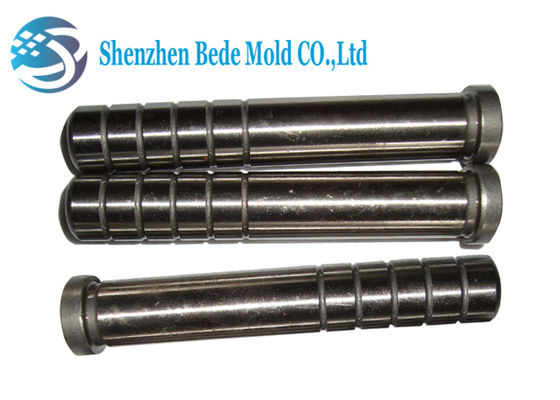

       Leader pins is a guide element used with components in the mold to ensure that the mold moves with precise positioning and guides the mold travel. It is usually cylindrical with shoulder and have some oil grooves.

        The material of guide pins usually uses bearing steel, die steel and so on. The bearing steel SUJ2 greatly strengthens the durability and commutativity of the guide rod, So its application is the most extensive.

    SUJ2 Standard Mould Parts Guide Pillar And Bush High Lubrication Low Tolerance

    Quick Details

       Because of the reason of usage, the guide pins needs smooth surface,requiring small cylindrical tolerances and low surface roughness.



    materials bearing steel, die steel Roughness Ra 0.8~1.0
    Size customized and standard Tolerance 0.005mm
    hardness HRC 50~55° ODM / OEM welcome

    SUJ2 Standard Mould Parts Guide Pillar And Bush High Lubrication Low Tolerance

    Standard Size

       We have the following standard sizes of leader pins in stock, generally can be shipped within 3 working days, if customized thimbles, delivery time is generally 15-20 days.



    Standard Sizes
    of Leader Pins
    Diameter
    16,18,20,22
    25,28,32,35,38
    40,45,50,60



    SUJ2 Standard Mould Parts Guide Pillar And Bush High Lubrication Low Tolerance



    Packing and Shipping



       The leader pins are packaged with plastic bags with rust preventing oil, customized package is welcome.

    About the shipping, all the well-known express companies and ocean shipping can be selected, but in remote areas, we can only use EMS.
