Hot Die Steel Materials SKD61 Mold Sprue Bushing Precision Mold Parts Heat Resistant

Hot Die Steel Materials SKD61 Mold Sprue Bushing Precision Mold Parts Heat Resistant

  • Hot Die Steel Materials SKD61 Mold Sprue Bushing Precision Mold Parts Heat Resistant
  • Hot Die Steel Materials SKD61 Mold Sprue Bushing Precision Mold Parts Heat Resistant
  • Hot Die Steel Materials SKD61 Mold Sprue Bushing Precision Mold Parts Heat Resistant
Hot Die Steel Materials SKD61 Mold Sprue Bushing Precision Mold Parts Heat Resistant
Product Details:
Place of Origin: China
Brand Name: BD
Certification: RoHS
Model Number: BDSB0000
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: PE bags
Delivery Time: 5~8 work days
Payment Terms: Western Union, L/C, D/A, D/P, T/T
Supply Ability: 5000 pieces per week
Contact Now
Detailed Product Description
Materials: Hot Die Steels Hardness: 50~52
Tapy: A,B,C Size: φ2.5~5.0
High Light:

parting line locks

,

plastic moulded components

Hot Die Steel Materials SKD61 Mold Sprue Bushing Precision Mold Parts Heat Resistant

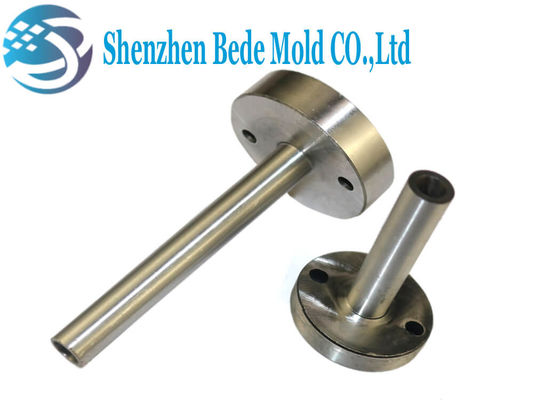

Description of the mold sprue bushings

The sprue bush is a part that allows plastic material to be injected from the nozzle into the interior of the mold. It is fixed to the mold with 2 bolts to prevent it from falling off due to the injection pressure. In order to prevent leakage of plastic material, the feed port is generally designed in an arc shape.

Hot Die Steel Materials SKD61 Mold Sprue Bushing Precision Mold Parts Heat Resistant 0

click here download the price list for sprue bushing C.pdf



Quick Details of the mold sprue bushings



materials  Hot die steels SKD61,Bearing steel Type  A,B,C Tapy
Hardness HRC48°~52° Size φ2.5~5.0
Customized  welcome Packing PE bags or customized



Hot Die Steel Materials SKD61 Mold Sprue Bushing Precision Mold Parts Heat Resistant 1

Materials of the mold sprue bushings

     1. SKD61 hot work die steel can produce high-end and very durable sprue bushing, the hardness can reach 48~52HRC. The sprue bush made with SKD61 has the characteristics of high temperature resistance and durability, and the quality of the molded product is excellent.
    2. SUJ2 bearing steel is a commonly used manufacturing material for the middle end sprue bushing. The heat treatment hardness is about ±HRC52.
    3. S45C, the material used in the low-end mold, after the high temperature, spray anti-rust oil and other anti-rust treatment to prevent rust.

  Hot Die Steel Materials SKD61 Mold Sprue Bushing Precision Mold Parts Heat Resistant 2

Size of the mold sprue bushings

   The relationship between the size of the sprue sleeve and the tonnage of the injection molding machine is as follows. the types of plastics materials being injection molded have a littell  impact on them.



Size of sprue sleeve φ2.5 φ3.0 φ3.5 φ4.0 φ4.5 φ5.0
Tonnage of injection machine 25~80T 100~150T 160~200T 220~260T 300~350T 400~450T



Hot Die Steel Materials SKD61 Mold Sprue Bushing Precision Mold Parts Heat Resistant 3
