|Place of Origin:||China|
|Minimum Order Quantity:||500 pcs|
|Price:||0.17 USD per piece|
|Packaging Details:||plastic box or PE bags|
|Payment Terms:||D/A, L/C, D/P, T/T, Western Union|
|Supply Ability:||50000 pieces per week|
|Materials 1:||Nylon-66||Materials 2:||Alloy Steel|
|Performance:||Head Resistan||Packing:||50 Pieces/ PE Bag|
parting locks mould,
parting line locks
Nylon 66 Materials Temperature Resistant Red Color φ12 Mould Parting Locks for plastic Injection

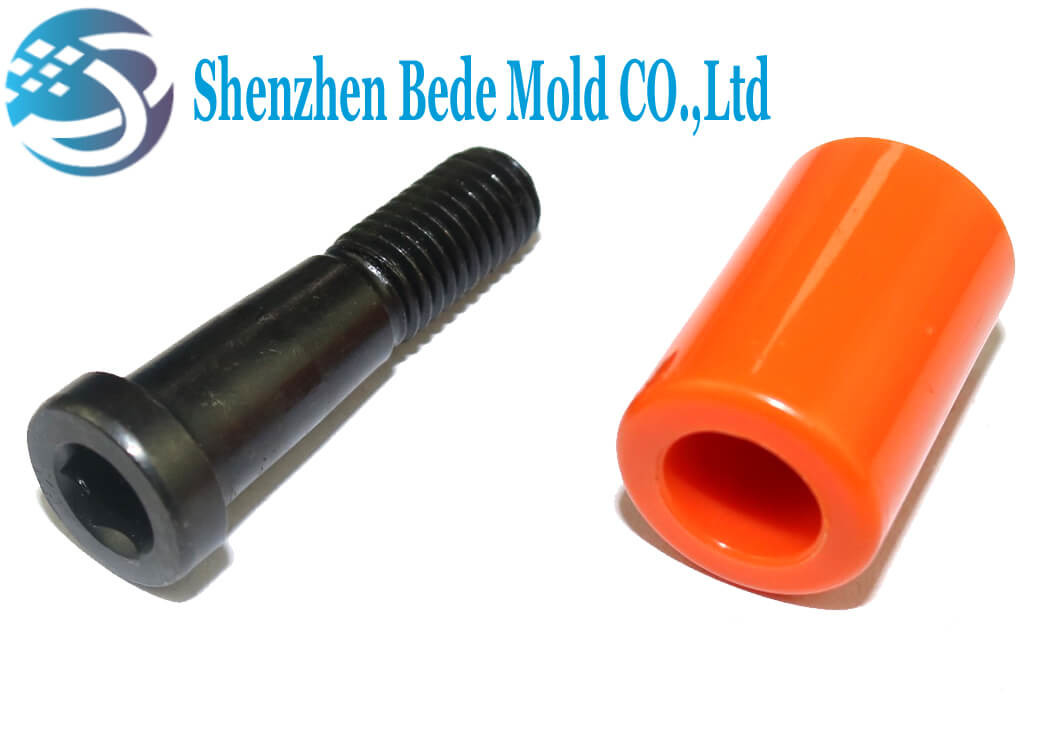

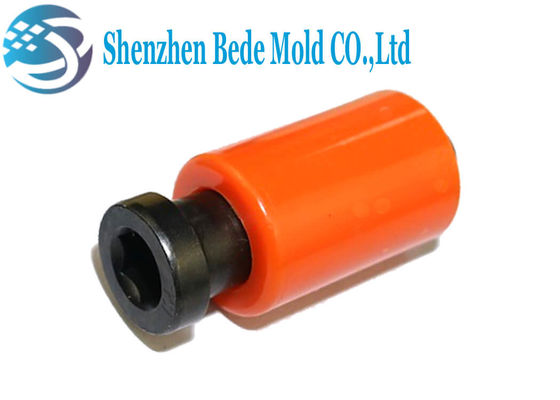

The nylon parting lock is part of the friction between the mold and the nylon sleeve by locking the tapered bolt. It is made up of nylon sleeve and alloy steel bolt. The color of nylon sleeve is white, yellow, red and blue.
The mold lock enables the mold to be easily dismantled. During the processing, the friction between the mold and the resin is adjusted by tilting the screw, and the mold can be closed about 50000 times by turning 1/4 circle.
The color and performance of parting locks are as follows:
|yellow||Wear-resisting||blue||High temperature resistance|
1. Insert the resin sleeve into the movable side of the template approximately 3 mm.
2. Create a hole in the fixed side of the template and complete it to reduce the internal surface roughness.
3. To maintain the durability of the mold parting lock, perform R chamfering on the entrance edge instead of C chamfering.
4. PLBS bushings specifically designed for use with this split lock help to replace the R chamfer and surface finish process. The taper bolt of this mold opening controller can be tightened or loosened to adjust the tension.
The materials of the cone bolt is alloy steel, has excellent tensile strength and fatigue resistance, and the screw thread adopts international standards. The nylon sleeves are produced by PA66 and special additives, different colors have the different characteristics.
|materials of bolt||alloy steel||Color||Red|
|materials of sleeve||Nylon-66||Size||φ12|
1. The sleeve of parting locks are used special nylon material, has good wear resistance and heat resistance, although the nylon sleeve heat resistance temperature is 150, but in the actual use process, because of the continuous effect of the locking stress of conical bolts, durability of the nylon sleeve will be reduced, so it general used below 80℃.
2. Do NOT add lubricating oil on nylon sleeve.
Packing and Shipping
The parting locks are packaged with plastic boxes or PE bags as the pictrue show, and customized package is welcome.
About the shipping, all the well-known express companies and ocean shipping can be selected, but in remote areas, we can only use EMS.
Contact Person: Sales Manager
