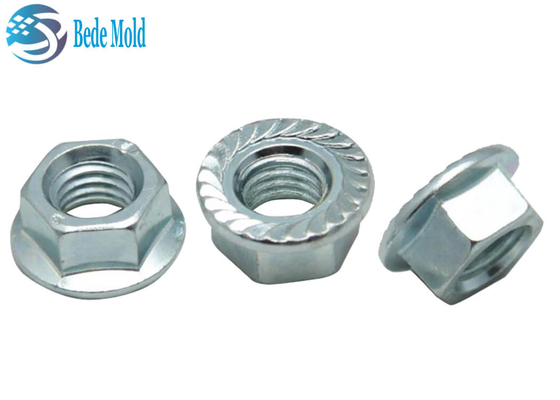

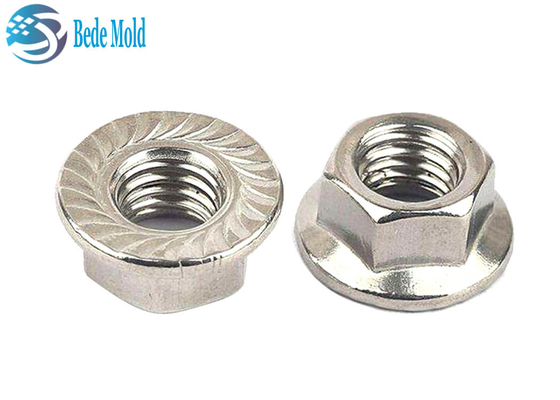

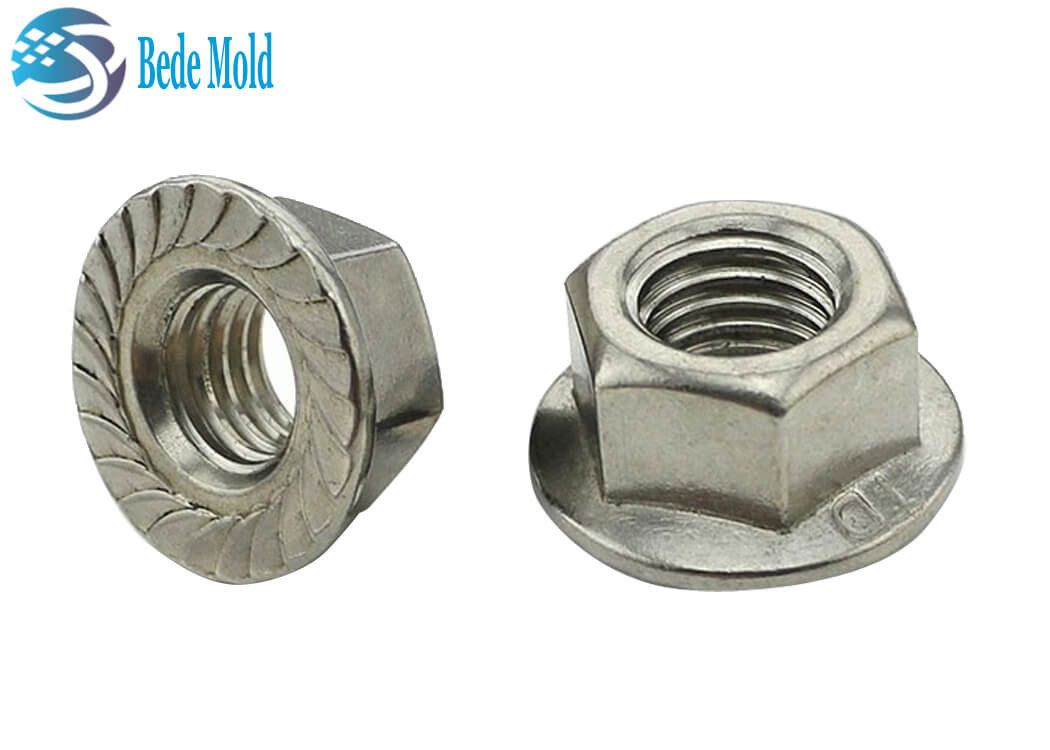

Metric Hex Flange Nuts DIN6932 8.8 9.9 12.9 Grade Alloy Steel Materials Nickel / Zinc Plating

Metric Hex Flange Nuts DIN6932 8.8 9.9 12.9 Grade Alloy Steel Materials Nickel / Zinc Plating

    • Metric Hex Flange Nuts DIN6932 8.8 9.9 12.9 Grade Alloy Steel Materials Nickel / Zinc Plating
    • Metric Hex Flange Nuts DIN6932 8.8 9.9 12.9 Grade Alloy Steel Materials Nickel / Zinc Plating
    • Metric Hex Flange Nuts DIN6932 8.8 9.9 12.9 Grade Alloy Steel Materials Nickel / Zinc Plating
  • Metric Hex Flange Nuts DIN6932 8.8 9.9 12.9 Grade Alloy Steel Materials Nickel / Zinc Plating

    Product Details:

    Place of Origin: China
    Brand Name: BEDE
    Certification: RoSH
    Model Number: Flange nut

    Payment & Shipping Terms:

    Minimum Order Quantity: 200
    Price: Negotiation
    Packaging Details: 1000 Per Box
    Delivery Time: 15-25 Work Days
    Payment Terms: D/A, D/P, T/T, Western Union
    Supply Ability: 100K 1 Day
    Contact Now
    Detailed Product Description
    Material: Iron / Alley Steel Standard:: Metric
    Color: White / Colorful Grad: 8.8 / 9.9 / 12.9
    Treatment: Nickel Plated / Zinc Plated
    High Light:

    hexagon head bolt

    ,

    fully threaded hex bolts

    Metric Hex Flange Nuts DIN 6932 8.8 9.9 12.9 Grade Iron / Alloy Materials Nickel / Zinc Plating



    Description

      A section of the nut has a patterned flange to increase the contact area to share the pressure and prevent loosening, lessens the need to use a washer, the flange have 2 kinds, plain and serrated



    Materials of the hex flange nut

    Iron or alley steel, deponed on the glade , hardness 33~38



    Quick Details of the hex flange nut

    Size M5-M20 Thread type Metric Fine
    Materials Iron/ alley steel Treatment Nickel / Zinc plated
    customized welcome Packing customized



    Standard Size of the hex flange nut

    Metric Hex Flange Nuts DIN6932 8.8 9.9 12.9 Grade Alloy Steel Materials Nickel / Zinc Plating 0

    D P m S dc max  weight per 1000pcs
    max min max min
    M5 0.8 5

    4.7

    8 7.78 11.8 1.42
    M6 1 6 5.7 10 9.78 14.2 2.76
    M8 1.25 8 7.64 13 12.73 17.9 6
    M10 1.5 10 9.64 15 14.73 21.8 9.63
    M12 1.75 12 11.57 18 17.73 26 16.66
    M14 2 14 13.3 21 20.67 29.9 25.8
    M16 2 16 15.3 24 23.67 34.5 38.64
    M20 2.5 20 18.7 30 29.16 42.8 70.9





    For the customized size, please tell us the values dc*m*D*S  as following picture, everything else will be done by us for you.



    Metric Hex Flange Nuts DIN6932 8.8 9.9 12.9 Grade Alloy Steel Materials Nickel / Zinc Plating 1
