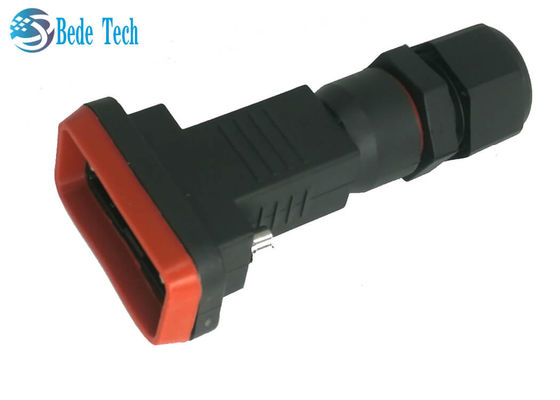

Waterproof AISG Connector RET AISG Cable Pulg D-USB 15 PIN 3G 4G Communication Cabinet Plug

Waterproof AISG Connector RET AISG Cable Pulg D-USB 15 PIN 3G 4G Communication Cabinet Plug

    • Waterproof AISG Connector RET AISG Cable Pulg D-USB 15 PIN 3G 4G Communication Cabinet Plug
    • Waterproof AISG Connector RET AISG Cable Pulg D-USB 15 PIN 3G 4G Communication Cabinet Plug
    • Waterproof AISG Connector RET AISG Cable Pulg D-USB 15 PIN 3G 4G Communication Cabinet Plug
  • Waterproof AISG Connector RET AISG Cable Pulg D-USB 15 PIN 3G 4G Communication Cabinet Plug

    Product Details:

    Place of Origin: China
    Brand Name: BEDE
    Certification: UL CE ROHS
    Model Number: DB 15Pin

    Payment & Shipping Terms:

    Minimum Order Quantity: 100
    Price: $0.99
    Packaging Details: 1000 pcs in a carton, size 480*410*410mm, G.W. 25KG.
    Delivery Time: 2 days for retail, 20 days for wholesale
    Payment Terms: Western Union , T/T ,Papay
    Supply Ability: 50000/week
    Contact Now
    Detailed Product Description
    Model Number:: BEDE-AISG-DB15 Type: Plastic Connector
    Protection Level: IP 67/68 Function: Waterproof
    Material: PA66 UL94V-0 Colour: Black
    Size: 41mm*22mm*79mm Operating Temperature: -55℃~125℃

           RRU To RRU RET Control Cable AISG Connector DB 15PIN 3G 4G Communication Cabinet Plug

    Description

    1, name: DB 15Pin plug
    2, material: PA66 UL 94V0
    3, Protection Level: IP 67/68
    4, Withstand voltage: 1000VAC, 60s, 1mA
    5, Rated voltage: 300V
    6,Rated current: 5A

    Click To Download DB-TDS.pdf

    Waterproof AISG Connector RET AISG Cable Pulg D-USB 15 PIN 3G 4G Communication Cabinet Plug

    Model specification

    Name Factory Model Standards
    DB15 Connector BEDE BEDE-AISG-DB15 RoHS



    Parameter

    Name Material Plating
    Plastic connector PA66 UL94V-0 /
    Size 41mm*22mm*25mm /
    Pinhole brass 1.27um Ni bottom, gold plated contact 0.02-0.03um, fogging in the tail area Tin 2.5um

    installation Screw
    Size 30.8(A)*25(B)*12.5(C)*2.29(D)
    Pins No. 15 PIN
    Button /
    Operating temperature  -55℃~125℃
    Rated voltage  300V
    Rated current  5A
    Withstand voltage  1000VAC,60s,1mA
    Insulation resistance ≥5000MΩ
    Contact resistance ≤30mΩ
    Contact form  welding
    Lifetime 500 cycles
    Storage conditions Normal temperature and humidity, no corrosive gas environment
    Storage time 5 years
    Application
         This waterproof plug can be used in a variety of electrical appliances and cabinets. It is a good choice for outdoor waterproofing.
