Shenzhen Bede Mold Co., Ltd
One Stop Total Solution Supplier of Injection Mold and Stamping Dies
 |
| Place of Origin: | China |
| Brand Name: | BD |
| Certification: | RoHS |
| Model Number: | BD~S0000 |
| Minimum Order Quantity: | Nagotiation |
|---|---|
| Price: | Nagotiation |
| Packaging Details: | 10~20 pieces in a PE bags,and then packing with wood caitons |
| Delivery Time: | 10~15 work days after payment |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 80000~100000 pieces per month |
| Material: | SKH 51 | Hardness: | 58~60° |
|---|---|---|---|
| Size: | φ1.0~φ20 | Type: | Steped |
| Tolerance: | 0.005 Mm | OEM / ODM: | Welcome |
| High Light: | stepped ejector sleeves,core pins and sleeves |
||

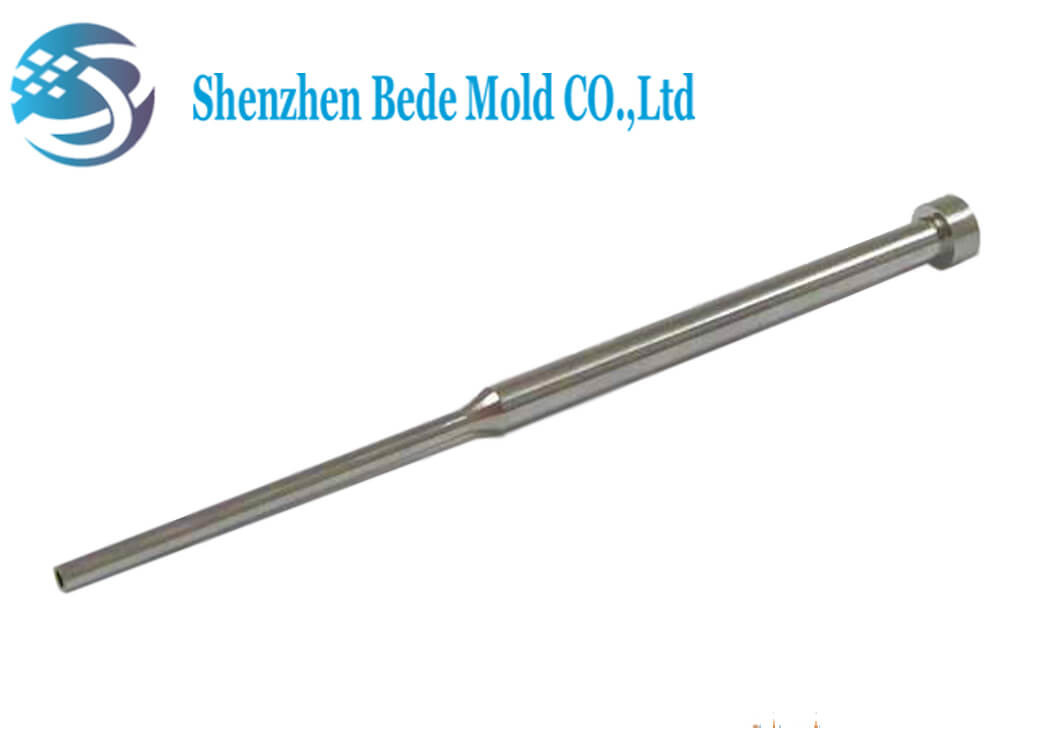

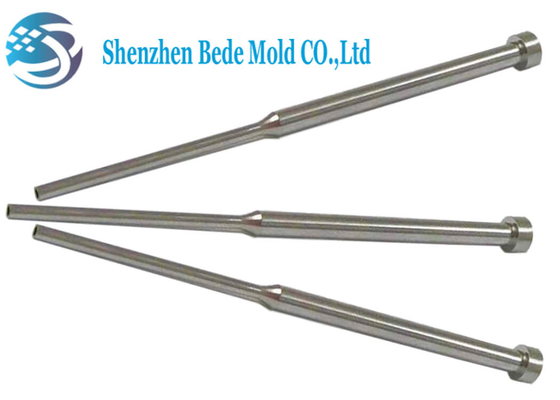

SKD11 Materials Steped Ejector Sleeves Wear-resisting and High Precision for Plastic Injection Mold
Description
The ejector sleeves is a kind of plastic mould accessories used in conjunction with ejector pins, it looks like a hollow ejector pins. When there are circular through-holes or blind holes in the injection products and it must be ejected, the ejector sleeves should be used.
Materials
SKD11 is a kind of high carbon high chromium alloy tool steel. It is a cold work die steel with good toughness and high temperature fatigue resistance, good cutting performance and polishing performance. It has high hardness and wear resistance after heat treatment, and is stable in size at high temperature. It is suitable for making high-precision and long-life plastic mold parts.
Quick Details
| materials | coldwork die steel | type | Straight |
| treatment | Heat treatment | packing | 20 pcs in a PE bag |
| hardness | HRC 58~60° | size | φ1.0~20(HASCO standard) |
| tolerance | 0.001mm | ODM / OEM | welcome |
Standard Size
According to HASCO standard, we have the following standard sizes of thimbles in stock, generally can be shipped within 3 working days, if customized thimbles, delivery time is generally 15-20 days.
| Size | Size of Head | Height of Head | Size | Size of Head | Height of Head |
| Φ1.0 | Φ2.5 | 1.20 | Φ6.0 | Φ12.0 | 5.00 |
| Φ1.2 | Φ2.5 | 1.20 | Φ6.5 | Φ12.0 | 5.00 |
| Φ1.5 | Φ3.0 | 1.50 | Φ7.0 | Φ12.0 | 5.00 |
| Φ1.8 | Φ3.0 | 1.50 | Φ8.0 | Φ14.0 | 5.00 |
| Φ2.0 | Φ4.0 | 2.00 | Φ8.5 | Φ14.0 | 5.00 |
| Φ2.2 | Φ4.0 | 2.00 | Φ9.0 | Φ14.0 | 5.00 |
| Φ2.5 | Φ5.0 | 2.00 | Φ10.0 | Φ16.0 | 5.00 |
| Φ3.0 | Φ6.0 | 3.00 | Φ10.5 | Φ16.0 | 5.00 |
| Φ3.2 | Φ6.0 | 3.00 | Φ11.0 | Φ16.0 | 5.00 |
| Φ3.5 | Φ7.0 | 3.00 | Φ12.0 | Φ18.0 | 7.00 |
| Φ4.0 | Φ8.0 | 3.00 | Φ14.0 | Φ22.0 | 7.00 |
| Φ4.2 | Φ8.0 | 3.00 | Φ15 | NA | |
| Φ4.5 | Φ8.0 | 3.00 | Φ16.0 | Φ22.0 | 7.00 |
| Φ5.0 | Φ10.0 | 3.00 | Φ18.0 | Φ24.0 | 7.00 |
| Φ5.5 | Φ10.0 | 3.00 | Φ20.0 | Φ26.0 | 8.00 |
Customized
If a custom-sized product is needed, please let us know the following values, and anything else we have done for you.
Attention
It is necessary to spray antirust agent to prevent rust during the production of the cylinder. In the process of using, if the mold is idle for a long time, it should also pay attention to antirust.
Packing and Shipping
The ejector sleeves are packaged with plastic bags with rust preventing oil, customized package is welcome.
About the shipping, all the well-known express companies and ocean shipping can be selected, but in remote areas, we can only use EMS.
