Sliver Color Mold Sprue Bushing S45C Materials Φ1/2'' Head C Type Diameter 1-1/2''

Product Details:

Place of Origin:	China
Brand Name:	BD
Certification:	RoHS
Model Number:	BDSB0000

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	0.58~8.09 USD per piece
Packaging Details:	PE bags
Delivery Time:	within 2 day after payment
Payment Terms:	Western Union, L/C, D/A, D/P, T/T
Supply Ability:	5000 pieces per week

Contact Now

Detailed Product Description

Materials:	Carbon Steel S45C	Hardness:	HRC30
Tapy:	A Type	Bush Diameter:	1/2''
Length:	1-1/2~8''	Head Thickness:	3/8''
High Light:	sprue bushing injection molding , hot sprue bushing

Mold Parts Mold Sprue Bushing S45C Materials Φ1/2'' Head C Type Diameter 1-1/2''

Background
The sprue bush is a part that allows plastic material to be injected from the nozzle into the interior of the mold. The tapy A sprue bushing is fixed to the mold with 2 bolts to prevent it from falling off due to the injection pressure. In order to prevent leakage of plastic material, the feed port is generally designed in an arc shape.
Regarding the material, SKD61 and S45C are commonly used. S45C is a medium carbon steel with excellent wear resistance, but the ductility is reduced, the quenching performance is not good, and the hardness after quenching is HRC42, so it is used to make the sprue bushing of the low-end mold, after the high temperature, its need to spray anti-rust oil or other anti-rust treatment to prevent rust.
The relationship between the size of the sprue bushings and the tonnage of the injection molding machine is as follows. the types of plastics materials being injection molded have a littell impact on them.

Size of sprue sleeve	φ2.5	φ3.0	φ3.5	φ4.0	φ4.5	φ5.0
Tonnage of injection machine	25~80T	100~150T	160~200T	220~260T	300~350T	400~450T

specification & price list for sprue bushing C.pdf

Sliver Color Mold Sprue Bushing S45C Materials Φ1/2'' Head C Type Diameter 1-1/2'' 0

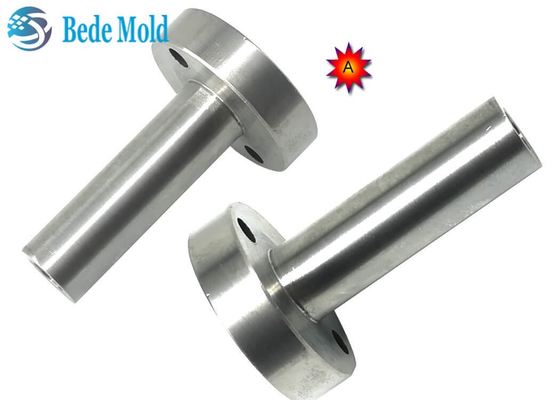

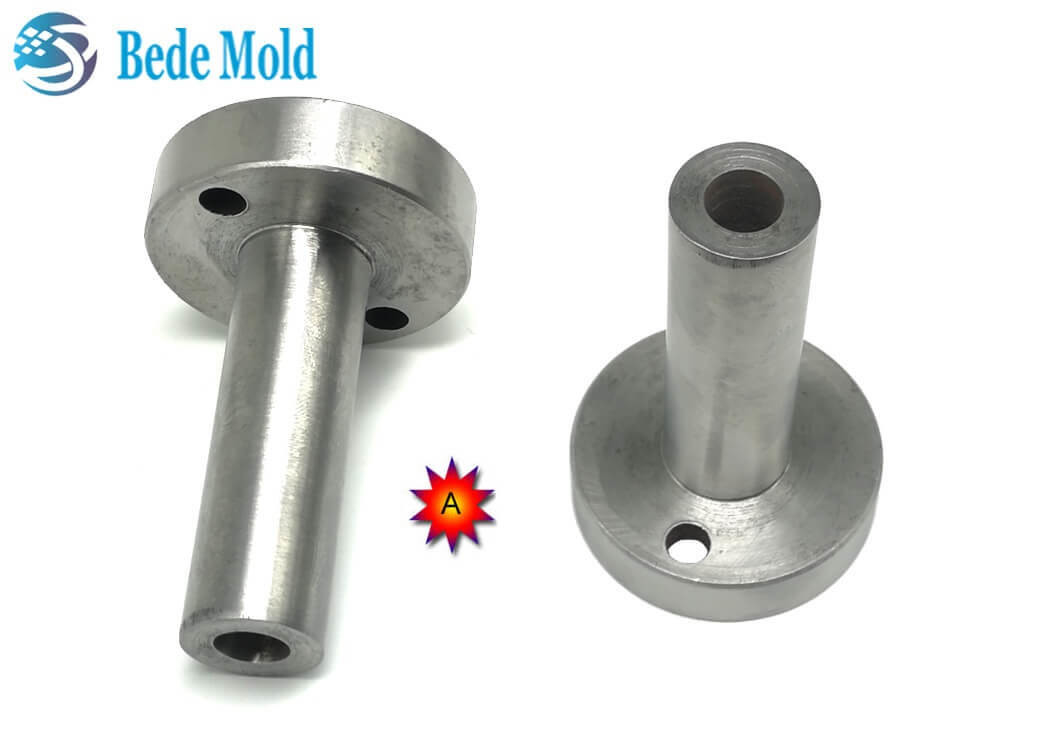

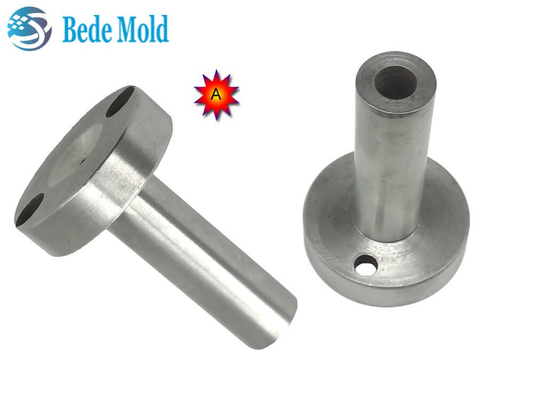

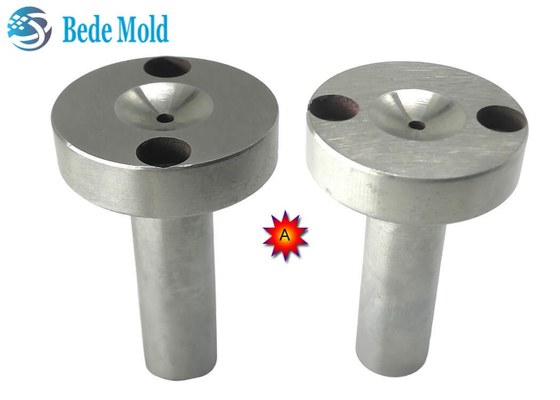

Description

materials: S45C
Head: A type, thickness 3/8'', diameter 1-1/2''
Bushing: diameter 1/2'' , length 1-1/2 ~ 8 inch
Hardness: HRC 30
ODM / OEM: welcome
Packaging: packed in a PE bag with anti-rust oil, then loaded into a carton

Sliver Color Mold Sprue Bushing S45C Materials Φ1/2'' Head C Type Diameter 1-1/2'' 1
Size and Price
We have stocks of the following sizes and can ship within 48 hours of payment. For custom sizes, please contact us via Whatsapp +8615915396878 or send a inquiry via email.

H /inch			1-1/2''		ΦD /inch	1/2''		T/ inch		3/8''
L /inch	1-1/2	1-3/4	2	2-1/4	2-1/2	2-3/4	3	3-1/4	3-1/2	3-3/4
Price/USD	0.58			0.62	0.64	0.66	0.68	0.70	0.74	0.81

H /inch			1-1/2''		ΦD /inch	1/2''		T/ inch		3/8''
L /inch	4''	4-1/4''	4-1/2''	5''	5-1/2''	6''	6-1/2''	7''	7-1/2''	8''
Price/USD	0.83	0.87	0.92	1.11	1.27	1.45	2.78	5.89	6.62	8.09
