Alloy Steel Materials Precision Mold Parts Locating Cylindrical Dowel Pins With Internel Thread

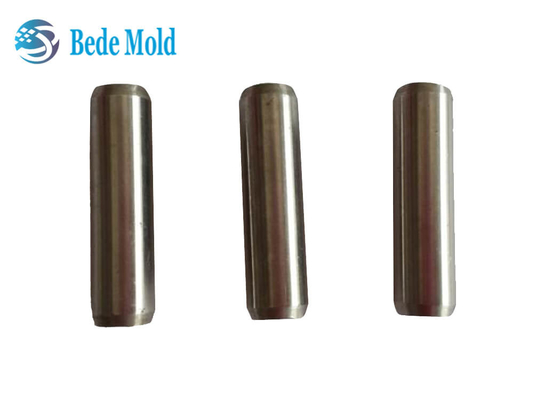

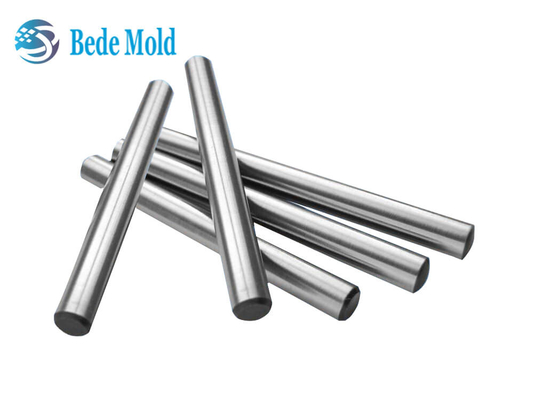

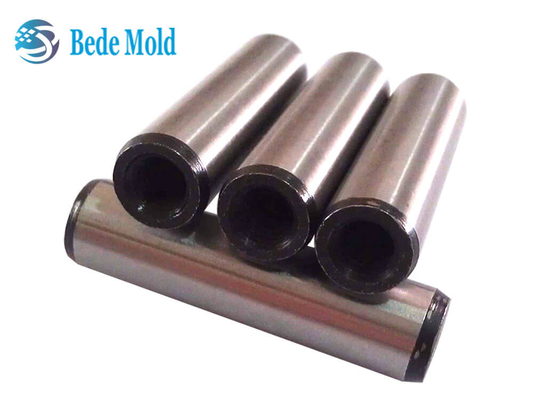

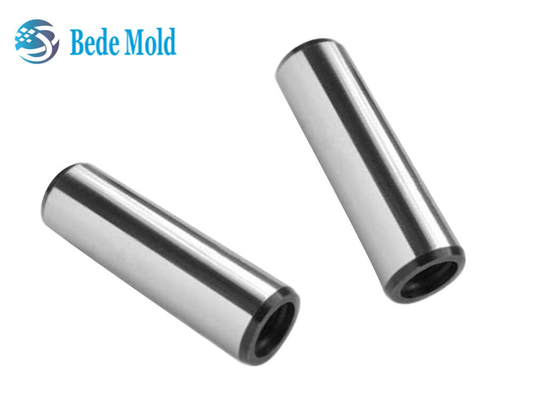

Alloy Steel Materials Precision Mold Parts Locating Cylindrical Dowel Pins With Internel Thread

  • Alloy Steel Materials Precision Mold Parts Locating Cylindrical Dowel Pins With Internel Thread
  • Alloy Steel Materials Precision Mold Parts Locating Cylindrical Dowel Pins With Internel Thread
  • Alloy Steel Materials Precision Mold Parts Locating Cylindrical Dowel Pins With Internel Thread
  • Alloy Steel Materials Precision Mold Parts Locating Cylindrical Dowel Pins With Internel Thread
Alloy Steel Materials Precision Mold Parts Locating Cylindrical Dowel Pins With Internel Thread
Product Details:
Place of Origin: China
Brand Name: BD
Certification: RoHS
Model Number: BDC000
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: 1 pieces in a PE bag and then packing by wood cartons
Delivery Time: within 15 work days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 8000~10000 pieces per month
Contact Now
Detailed Product Description
Materials: Alloy Steel Size: Customized
OEM / ODM: Welcome Tapy: Cylindrical Pins
Product Name: Mold Component Standard: DIN
High Light:

parting locks mould

,

plastic moulded components

Locating Pins Cylindrical Pins Dowel Pins With Internel Thread Alloy Steel Materials



Description



     Also known as parallel pins, the locating pins are solid metal cylinders. Widely used to hold parts in a fixed position, to maintain alignment between different parts, or to connect different parts together. Appearance requires smooth surface and flat or rounded end.
    Precision locating pins are manufactured to tolerance and length requirements and meet stringent industry standards to ensure a tight and tight fit.

Alloy Steel Materials Precision Mold Parts Locating Cylindrical Dowel Pins With Internel Thread 0



    We are very capable of producing precision mold parts based on your drawings. Our certified raw materials are imported from reputable companies. In addition, through the continuous efforts of the past 9 years, our products have reached a tolerance of very close to 0.001mm.

     We hope that through our efforts, you can complete your procurement tasks, reduce your procurement costs, and achieve long-term win-win cooperation with us.



Materials



45#,40Cr,GCr15 can be chosen,please select the appropriate material according to your environment or specify other materials.







Alloy Steel Materials Precision Mold Parts Locating Cylindrical Dowel Pins With Internel Thread 1



Size



Size 6 8 10 12 16 20
d1 M4 M5 M6 M6 M8 M10
a 0.8 1 1.2 1.6 2 2.5
c 1.2 1.6 2 2.5 3 3.5
t 6 8 10 12 16 18
t1 min 10 12 16 20 25 28
L 16-100mm

How to make a deal with us?

  • Send us design drawing first
  • Check design drawing
  • Make a quotation
  • Quotation acceptance
  • Production&quality inspection
  • Delivery and shipping

Why choose us

  • HASCO, DME, Rabourdin and more, and non-standard customized mold components is available
  • Your inquiries will get highly attention and be reply within 24 hours
  • Direct supplier, manufacture price
  • Professional manufacturer, advanced facilities and experienced engineers
  • Guaranteed quality, superior material quality compared to all others
  • Customer oriented, efficient solution to control the cost for our client
  • OEM and ODM orders are welcome, professional R&D team
  • High quality and inexpensive, each part would be given 100% test and tryout before shipment

Packing and Shipping

     The dowel pins are packaged with plastic bags with rust preventing oil, and then packing with cartons, customized package is welcome.

   About the shipping, all the well-known express companies and ocean shipping can be selected, but in remote areas, we can only use EMS.
