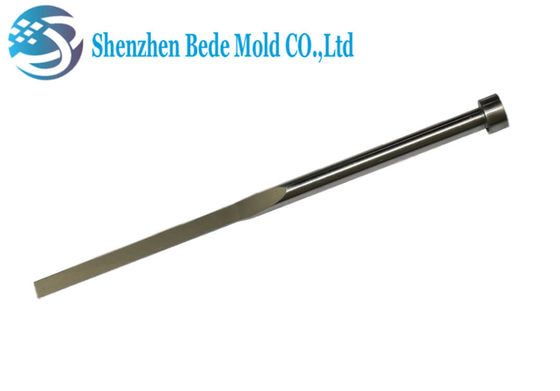

SKH51 Ejector Blade Precision Mold Components / Plastic Moulded Components

SKH51 Ejector Blade Precision Mold Components / Plastic Moulded Components

    • SKH51 Ejector Blade Precision Mold Components / Plastic Moulded Components
    • SKH51 Ejector Blade Precision Mold Components / Plastic Moulded Components
    • SKH51 Ejector Blade Precision Mold Components / Plastic Moulded Components
  • SKH51 Ejector Blade Precision Mold Components / Plastic Moulded Components

    Product Details:

    Place of Origin: China
    Brand Name: BD
    Certification: RoHS
    Model Number: BDE000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Price: Negotiation
    Packaging Details: 20 pieces in a PE bag and then packing by wood cartons
    Delivery Time: within 15 work days
    Payment Terms: L/C, , D/A, D/P, T/T, Western Union
    Supply Ability: 80000~100000 pieces per month
    Contact Now
    Detailed Product Description
    Materials: High Speed Steel Hardness: 55~60°
    Size: φ1.0~20(HASCO Standard) Packing: 20 Pcs In A PE Bag
    Treatmengt: Nitrided OEM / ODM: Welcome
    Type: Blad Tolerance: 0.005 Mm

    Standard Size SKH51 High Speed Steel Mold Ejector Pins for Plastic Injection Molding



    Description

        Mold Ejector blades is commonly plastic mold parts, used to separate products from the mold.  It is required to have  high hardness, good toughness and hard breaking.



    Materials

       High speed steel SKH51, SKD61, SKD11 and 65Mn were usually used to  make the ejector pins. The toughness of SKH51 is better than SKD61, but SKD61 can withstand high temperature 1600℃, and if it was after surface nitriding treatment, the wear resistance can be improved very well. Because of its poor quality and brittleness, the application of  65Mn is becoming less and less in ejector pins industry recently.



    SKH51 Ejector Blade Precision Mold Components / Plastic Moulded Components



    Standard Size

    According to HASCO standard, we have the following standard sizes of thimbles in stock, generally can be shipped within 3 working days, if customized thimbles, delivery time is generally 15-20 days.



    Size Size of Head Height of Head Size Size of Head Height of Head
    Φ1.0 Φ2.5 1.20 Φ6.0 Φ12.0 5.00
    Φ1.2 Φ2.5 1.20 Φ6.5 Φ12.0 5.00
    Φ1.5 Φ3.0 1.50 Φ7.0 Φ12.0 5.00
    Φ1.8 Φ3.0 1.50 Φ8.0 Φ14.0 5.00
    Φ2.0 Φ4.0 2.00 Φ8.5 Φ14.0 5.00
    Φ2.2 Φ4.0 2.00 Φ9.0 Φ14.0 5.00
    Φ2.5 Φ5.0 2.00 Φ10.0 Φ16.0 5.00
    Φ3.0 Φ6.0 3.00 Φ10.5 Φ16.0 5.00
    Φ3.2 Φ6.0 3.00 Φ11.0 Φ16.0 5.00
    Φ3.5 Φ7.0 3.00 Φ12.0 Φ18.0 7.00
    Φ4.0 Φ8.0 3.00 Φ14.0 Φ22.0 7.00
    Φ4.2 Φ8.0 3.00 Φ15 NA
    Φ4.5 Φ8.0 3.00 Φ16.0 Φ22.0 7.00
    Φ5.0 Φ10.0 3.00 Φ18.0 Φ24.0 7.00
    Φ5.5 Φ10.0 3.00 Φ20.0 Φ26.0 8.00




    Quick Details

    For different applications, thimble usually has the following three kinds:

    1. Straight ejector pins,

    2. Two section ejector pins,

    3. Mold ejector blades.



    materials high speed steel type ejector blades
    treatment Nitrieding packing 20 pcs in a PE bag
    hardness HRC 55~60° size φ1.0~20(HASCO standard)
    tolerance 0.01mm ODM / OEM welcome



    SKH51 Ejector Blade Precision Mold Components / Plastic Moulded Components




    Packing and Shipping



       The ejector pins are packaged with plastic bags with rust preventing oil, customized package is welcome.

       About the shipping, all the well-known express companies and ocean shipping can be selected, but in remote areas, we can only use EMS.



    SKH51 Ejector Blade Precision Mold Components / Plastic Moulded Components
