Flat Wire Industrial Spring Precision Mold Parts 50CrVA Materails For Injection Mold / Stamping Die

Flat Wire Industrial Spring Precision Mold Parts 50CrVA Materails For Injection Mold / Stamping Die

    • Flat Wire Industrial Spring Precision Mold Parts 50CrVA Materails For Injection Mold / Stamping Die
    • Flat Wire Industrial Spring Precision Mold Parts 50CrVA Materails For Injection Mold / Stamping Die
    • Flat Wire Industrial Spring Precision Mold Parts 50CrVA Materails For Injection Mold / Stamping Die
    • Flat Wire Industrial Spring Precision Mold Parts 50CrVA Materails For Injection Mold / Stamping Die
    • Flat Wire Industrial Spring Precision Mold Parts 50CrVA Materails For Injection Mold / Stamping Die
  • Flat Wire Industrial Spring Precision Mold Parts 50CrVA Materails For Injection Mold / Stamping Die

    Product Details:

    Place of Origin: China
    Brand Name: BD
    Certification: RoHS
    Model Number: BD~s0000

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pieces
    Price: 0.17~1.80 USD per piece
    Packaging Details: Plistic bags
    Delivery Time: within 2 days for retail, 10~15 days for wholesale
    Payment Terms: Western Union, L/C, D/A, D/P, T/T
    Supply Ability: 120000~150000 pieces per month
    Contact Now
    Detailed Product Description
    Color: Yellow, Green, Red, Blown, Blue Material: 50CrVA
    Load: TF / TL / TM / TH / TB Outer Dia.: 8~70mm
    Length: 20~500 Mm Packing: PE Bags

    Flat Wire Industrial Spring Precision Mold Parts 50CrVA Materails For Injection Mold / Stamping Die



    Discraption

    • Mateials: Spring steel 50CrVA / 65Mn
    • Load:  Lightest  / TF, light / TL, Medium / TM,  Heavy / TH,  Extra Heavy /TB
    • Color: Yellow / Blue / Red / Green / Brown
    • Outer Diameter: 8~70 mm, Inner diameter is the 1/2 of the OD..
    • Length: 20~500 mm
    • Production standards: Japan JIS

    Materials of the industrial springs

       We have springs available in the following 3 materials. The performance and price of the 60Si2MnA and the 50CrVA are the same, 65Mn is a cheap one to meet the low-level requirements.

       The 60Si2MnA and the 50CrVA are higher-grade spring steel , Tensile strength σb (MPa): ≥ 1274 (130),  used as a high-load important spring with a large cross section and a valve spring with a working temperature <300 °C, a piston spring,  a safety valve spring, a injection mold spring and stamping die spring.

       The 65Mn spring steel , the tensile strength σb (MPa): 825~925, used for small loads, small sizes of springs, seat springs, spring springs, spring rings, valve springs, clutch reeds, brake springs, cold coil springs, etc.



    Load level , color and the compression ratio

      Different colors represent the load level of the spring, and we have stocks for various lengths, inquiry and purchase, please tell us the color * outer diameter * length

    Load Color Compression Ratio %

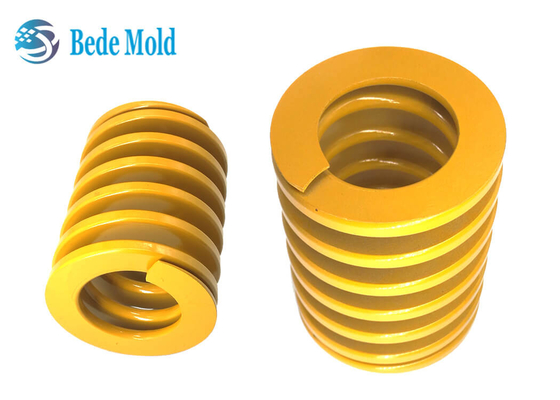

    Lightest yellow 40 45 50

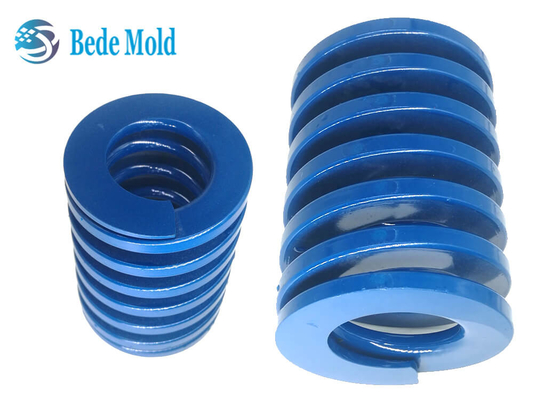

    Light blue 32 36 40

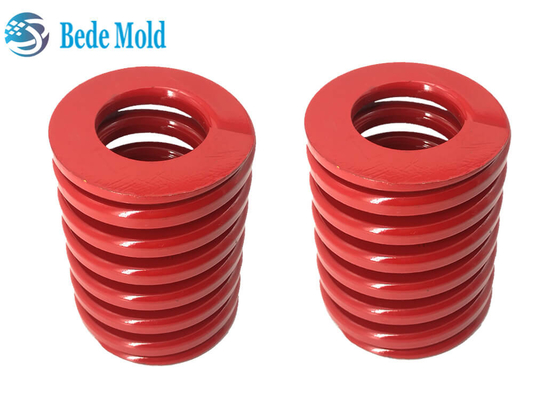

    Medium red 25.6 28.8 32

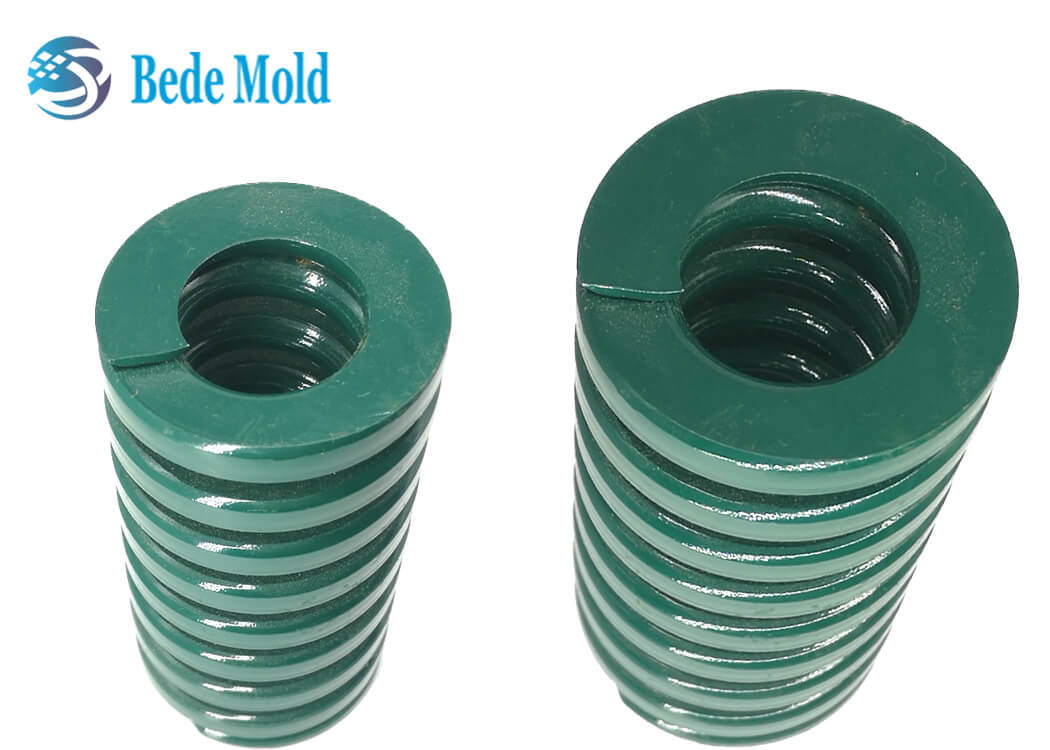

    Heavy green 19.2 21.6 24

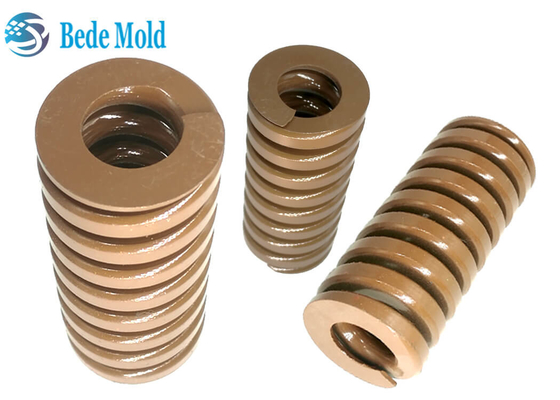

    Extra Heavy Brown 16 18 20
    Life length/Compression times 1,000,000 500,000 300,000



    size of the industrial springs

       We have the following sizes on stock, and will ship within 2 days after receiving the payment, but the quantity of the stock changes at any time,   so please contact us for confirmation before purchase.

    OD Φmm 8 10 12 14 16 18 20 22 25 27 30 35 40 50 60
    ID Φmm 4 5 6 7 8 9 10 11 12.5 13.5 15 17 20 25 30
    Length mm 20~300 50~300


    Application

     Springs are widely used in stamping dies, metal die-casting dies, plastic molds and other elastic precision mechanical equipment, automobiles and other fields.

    Attention

         Usually, the proportion of service life depends on the spring and compressed, probably relations are as follows,3 points should be paid attention to prevent premature failure of the spring:
         1.Maintaining initial compression more than 1mm
         2. Prevent any other articles from the middle of the spring
         3. Keep vertical compression to prevent bending

     Flat Wire Industrial Spring Precision Mold Parts 50CrVA Materails For Injection Mold / Stamping Die

     How to buy the industrial springs
    • Please pay attention to our minimum order quantity.
    • All shipping terms are available, please contact us for shipping cost.
    • Prices can be negotiated for bulk order,
    • customized size is available

        About the payment, T/T, PayPal and WestUnion is welcome, for the bulk order , please feel free to contact us for whlesale price.
