Rectangle Mold Spring Light load Die Set Springs ISO10243 International Standard

Rectangle Mold Spring Light load Die Set Springs ISO10243 International Standard

  • Rectangle Mold Spring Light load Die Set Springs ISO10243 International Standard
  • Rectangle Mold Spring Light load Die Set Springs ISO10243 International Standard
Rectangle Mold Spring Light load Die Set Springs ISO10243 International Standard
Product Details:
Place of Origin: China
Brand Name: BD
Certification: RoHS
Model Number: BD~s0000
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: PP bags and wood carton
Delivery Time: 10~15 work days
Payment Terms: Western Union, L/C, D/A, D/P, T/T
Supply Ability: 120000~150000 pieces per month
Contact Now
Detailed Product Description
Color: Green Material: Chromium Alloy Steel
Size: All Size Of ISO10243 Packing: PE Bags Or Customized
Service Life: Depending On The Compression Ratio Load: Light Load
High Light:

industrial coil springs

,

light duty die springs

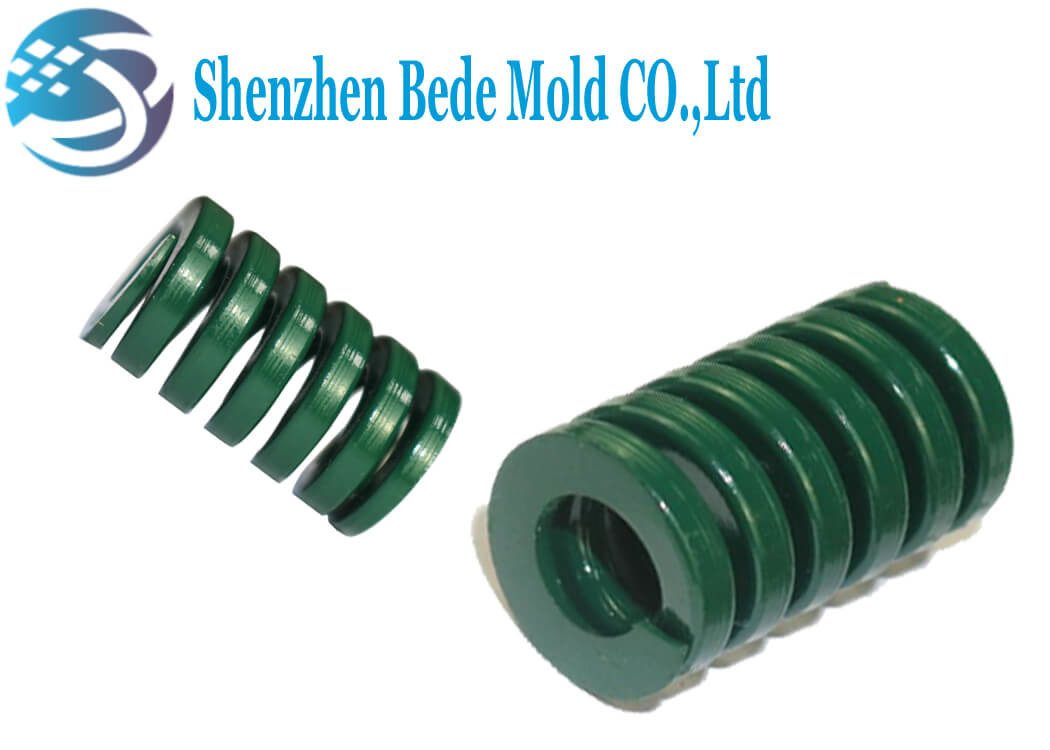

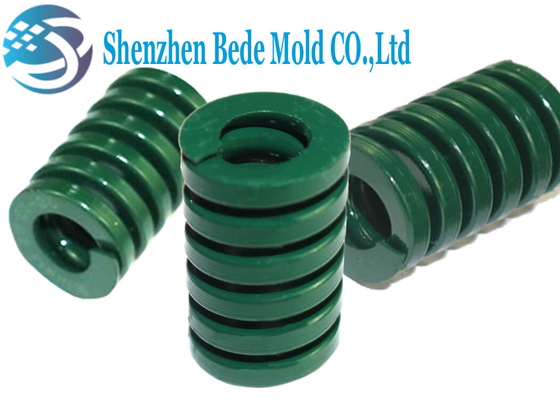

Light Load Die Set Springs Rectangle Mold Coil Springs Green Color ISO10243 International Standard

Discraption
   Springs are widely used in stamping dies, metal die-casting dies, plastic molds and other elastic precision mechanical equipment, automobiles and other fields.
   The material of die spring is usually chromium alloy steel, because its characteristics of high temperature resistance, rigidity and long service life.
     According to ISO10243 standards, the color and load are as follows:

Coloryellow red blueGreen
LoadOverweight  loadheavy loadMedium loadlight load



Service life3,000,0001,500,000200,000
Compression ratio 25%30%40%


 Click to download the PDF ISO 10243 blue color.pdf

Quick Details
   All of our springs are manufactured according to Japan JIS industrial standard, and customized size is welcome.


materialschromium alloy steelSizeISO10243
colorgreenloadlight


   The load = elastic coefficient * compression, please contact us for more information.

Size(mm)Elastic
coefficient(N/mm)
Compressed
length(mm)
Load(N)
Outer diameterInner diameterfree length
105387.111.481
1683819.411.4222
20103833.811.4

385


Standard Size
We have the following standard sizes of springs in stock, generally can be shipped within 3 working days, if it is customized , delivery time is generally 15-20 days.

 Outer diameter * inner diameter / mm

10*5

12.5*6.3

16*8

20*10

25*12.5

32*16

40*20

50*25
Length / mm  25,32,38,44,51,64,76,89,102,115,127,139,152,178,203,254...


Rectangle Mold Spring Light load Die Set Springs ISO10243 International Standard 0
Treatment
     The following processes are the treatment  to ensure product quality.

Pressure treatment:
   The spring to do more than three times of pressure treatment, eliminating the internal stress before use, no spring deformation, shorten the breakage and other phenomena.

Strengthened treatment:
   Spring surface strengthened shot peening treatment, improve the strength of stress concentration point, prolong the fatigue life of the spring.

Surface treatment:
     Adopt advanced color electrophoretic paint process, conform to European SOS standard, make the product paint surface even, adhesion is stronger.

Attention

     Usually, the proportion of service life depends on the spring and compressed, probably relations are as follows,3 points should be paid attention to prevent premature failure of the spring:
     1.Maintaining initial compression more than 1mm
     2. Prevent any other articles from the middle of the spring
     3. Keep vertical compression to prevent bending
