Shenzhen Bede Mold Co., Ltd
One Stop Total Solution Supplier of Injection Mold and Stamping Dies
 |
| Place of Origin: | China |
| Brand Name: | BD |
| Certification: | RoHS |
| Model Number: | OD 12~63 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PP bag |
| Delivery Time: | within 3 days after payment |
| Payment Terms: | Western Union, L/C, D/A, D/P, T/T |
| Supply Ability: | 120000~150000 pieces per month |
| Color: | Green | Material: | 50CrVA / SUP10 / 50CrV4 |
|---|---|---|---|
| Series: | V Series | Packing: | Airfoam And Carton |
| Cross Section: | Rectangle | Load Level: | Light |
| OD: | 10~63mm (Standard Size) | Length: | 25~305mm |

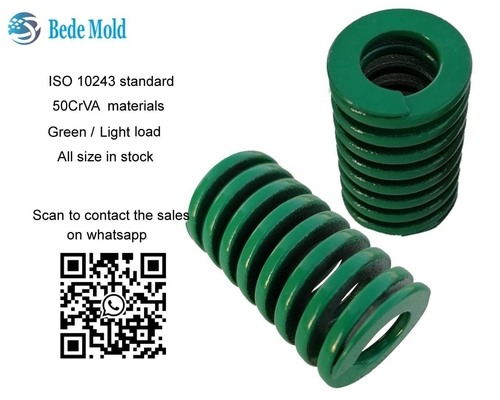

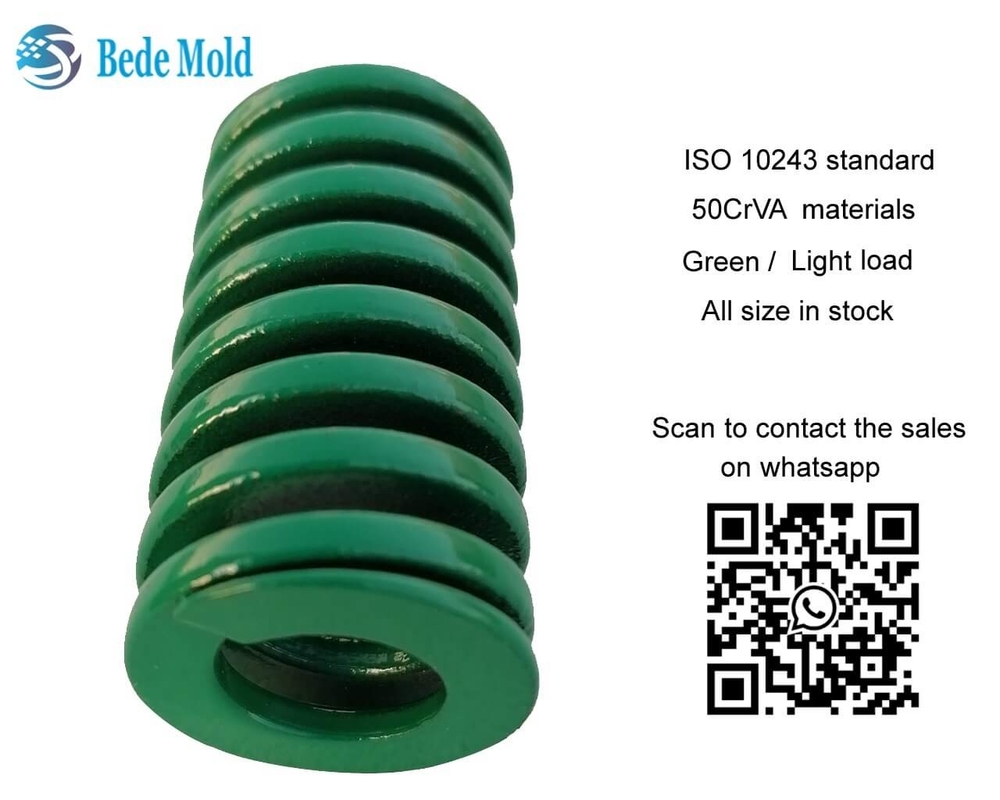

Light Load Mould Springs Green Color Compression Spring Rectangular Cross Section
1. Specifications of V series Mold Springs
| Dd / mm | Dh /mm | b x h / mm | load / N | optional length L0 / mm |
| 10 | 5 | 1.7x1.1 | 65~115 | 25, 32, 38, 44, 51, 64, 76, 305 |
| 12.5 | 6.8 | 2.4x1.4 | 110~235 | 25, 32, 38, 44, 51, 64, 76, 89, 102, 305 |
| 16 | 8 | 3.2x1.5 | 152~322 | 25, 32, 38, 44, 51, 64, 76, 89, 102, 115, 305 |
| 20 | 10 | 4.0x2.1 | 305~558 | 25, 32, 38, 44, 51, 64, 76, 89, 102, 115, 127, 139, 152, 305 |
| 25 | 12.5 | 5.4x2.7 | 532~1028 | 25, 32, 38, 44, 51, 64, 76, 89, 102, 115, 127, 139, 152,178, 203, 305 |
| 32 | 16 | 6.8x3.2 | 786~1429 | 38, 44, 51, 64, 76, 89, 102, 115, 127, 139, 152,178, 203, 254, 305 |
| 40 | 20 | 8.1x4.0 | 1080~1915 | 51, 64, 76, 89, 102, 115, 127, 139, 152,178, 203, 254, 305 |
| 50 | 25 | 10.9*5.3 | 2175~3994 | 64, 76, 89, 102, 115, 127, 139, 152,178, 203, 254, 305 |
| 63 | 38 | 11.0x7.8 | 2915~5746 | 76, 89, 102, 115, 127, 139, 152,178, 203, 254, 305 |
2. Series of square cross section mold spring according ISO10243
| Series | load level | color | Max. deflection |
| VL | Extre-Light | Light-Green ★ | 50% L0 |
| V | Light | Green ★ | 40% L0 |
| B | Medium | Blue ★ | 37.5% L0 |
| R | Heavy | Red ★ | 30% L0 |
| G | EXtre-Heavy | Yellow ★ | 25% L0 |
| A | Ultra-Heavy | Silver ★ | 15% L0 |
