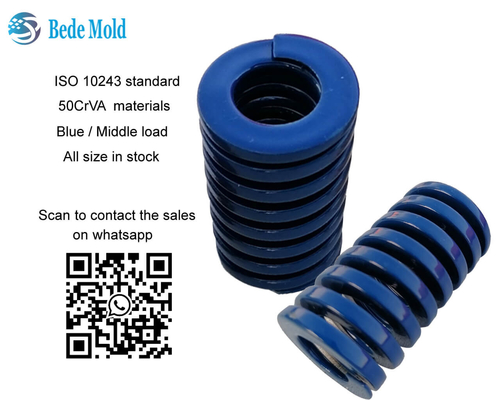

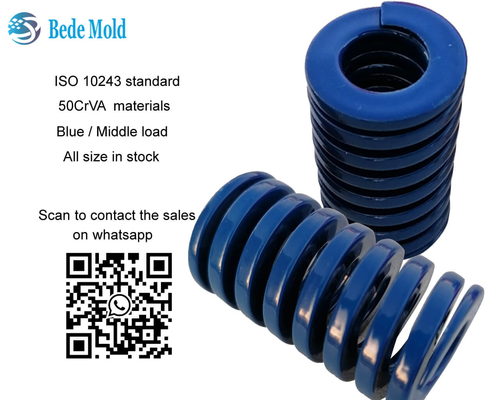

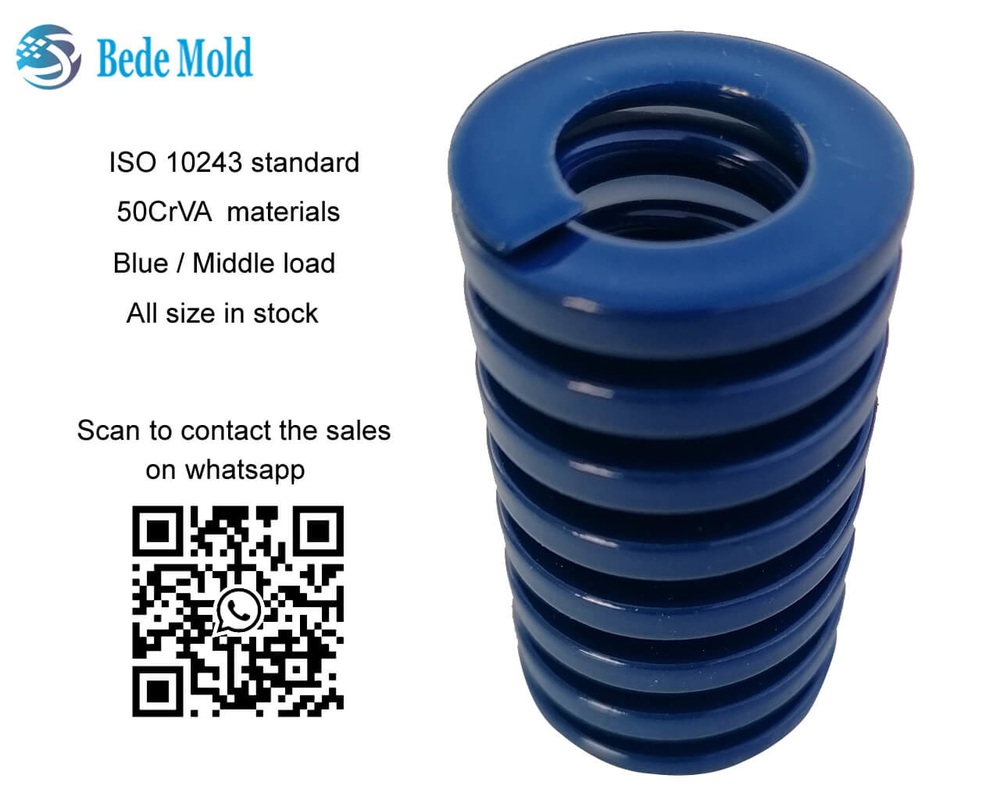

ISO10243 Standard Medium Load Mold Springs Blue Color B Series All size in stock

ISO10243 Standard Medium Load Mold Springs Blue Color B Series All size in stock

  • ISO10243 Standard Medium Load Mold Springs Blue Color B Series All size in stock
  • ISO10243 Standard Medium Load Mold Springs Blue Color B Series All size in stock
  • ISO10243 Standard Medium Load Mold Springs Blue Color B Series All size in stock
ISO10243 Standard Medium Load Mold Springs Blue Color B Series All size in stock
Product Details:
Place of Origin: China
Brand Name: BD
Certification: RoHS
Model Number: OD 10~63
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: airfoam and carton
Delivery Time: within 3 days after payment
Payment Terms: Western Union, L/C, D/A, D/P, T/T
Supply Ability: 120000~150000 pieces per month
Contact Now
Detailed Product Description
Color: Blue Material: 50CrV4 / G61500
Packing: Airfoam And Carton Max. Deflection: 37.5%
Load Level: Medium OD: 10~63mm (Standard Size)
Length: 25~305mm (Standard Size) OEM: Welcome

ISO10243 Standard Medium Load Mold Springs Blue Color B Series All Size In Stock



1. Specifications of  B series Mold Springs





Dd / mm Dh /mm b x h  / mm load / N optional length   L0   / mm
10 5 1.9x1.3 100~183 25, 32, 38, 44, 51, 64, 76, 305
12.5 6.8 2.5x1.5 160~300 25, 32, 38, 44, 51, 64, 76, 89, 102, 305
16 8 3.2x2.0 300~550 25, 32, 38, 44, 51, 64, 76, 89, 102, 115, 305
20 10 4.1x2.4 450~920 25, 32, 38, 44, 51, 64, 76, 89, 102, 115, 127, 139, 152, 305
25 12.5 5.4x3.3 780~1100 25, 32, 38, 44, 51, 64, 76, 89, 102, 115, 127, 139, 152,178, 203, 305
32 16 6.8x4.0 1400~2600 38, 44, 51, 64, 76, 89, 102, 115, 127, 139, 152,178, 203, 254, 305
40 20 8.2x4.7 1800~3400 51, 64, 76, 89, 102, 115, 127, 139, 152,178, 203, 254, 305
50 25 11.1*5.8 2900~5000 64, 76, 89, 102, 115, 127, 139, 152,178, 203, 254, 305
63 38 11.5x9.1 4900~8900 76, 89, 102, 115, 127, 139, 152,178, 203, 254, 305



ISO10243 Standard Medium Load Mold Springs Blue Color B Series All size in stock 0



2. About materials of this mold springs

     50CrVA is a higher grade spring, equivalent to US steel No. G61500, Japanese steel No. SUP10, British steel No. 735A51, German and French steel No. 50CrV4. It is mainly used as a high load important spring with large cross section and valve spring, piston spring, safety valve spring, heavy duty mould spring with working temperature <300 °C

ISO10243 Standard Medium Load Mold Springs Blue Color B Series All size in stock 1

3. About Us

  • Located in Dongguan, Guangdong Province, the manufacturing capital of China, with 15 years of experience in the production of mould parts and 6 years of experience in foreign trade, with customers all over the world
  • Customisation is available, such as laser printing your logo or company name on the springs
  • Wholesale only, distributors of mould parts are welcome to contact us at any time

ISO10243 Standard Medium Load Mold Springs Blue Color B Series All size in stock 2
