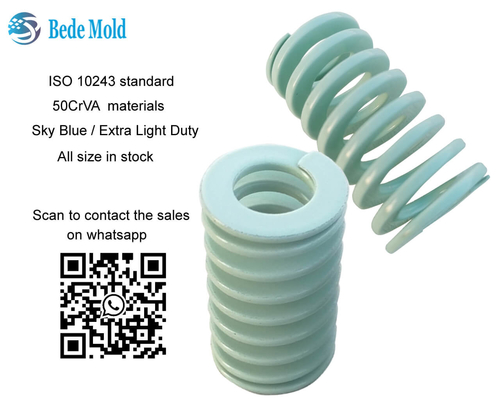

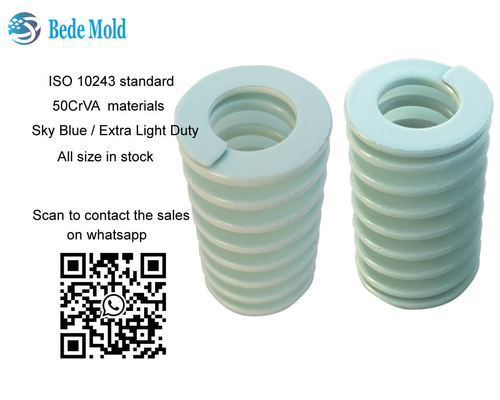

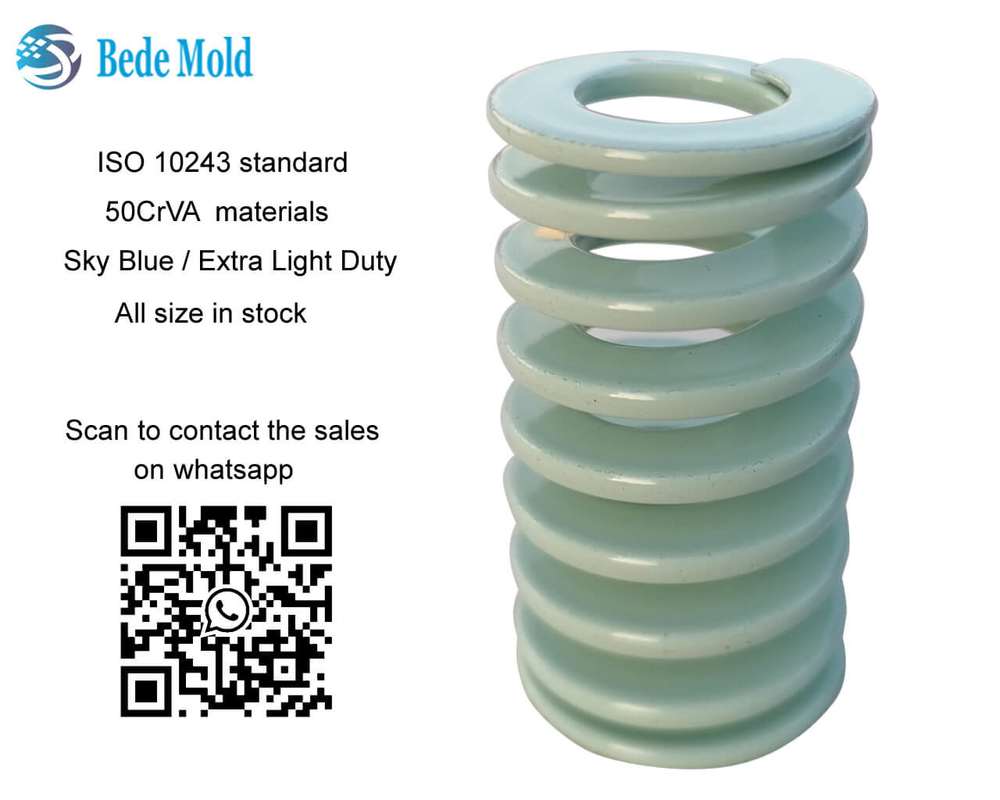

Extre Light Load Mold Spring ISO10243 Standard 50CrVA materials light green color

Extre Light Load Mold Spring ISO10243 Standard 50CrVA Materials Light Green Color

1. Data sheet of  VL series Springs

• OD 20 mm: ID=1/2OD=10mm, wire cross section 4.3*1.7mm,  optional length 25, 32, 38, 44, 51, 64, 76, 89, 102, 115, 127, 139, 152, 305mm; compression ratio 30-50%, approximate load 200~308N
• OD 25 mm: ID=1/2OD=12.5mm, wire cross section 5.4*2.2 mm, optional length 25, 32, 38, 44, 51, 64, 76, 89, 102, 115, 127, 139, 152,178, 203, 305mm; compression ratio 30-50%, approximate load 400~680N
• OD 32 mm: ID=1/2OD=16mm, wire cross section 6.5*2.6 mm, optional length 38, 44, 51, 64, 76, 89, 102, 115, 127, 139, 152,178, 203, 254, 305mm; compression ratio 30-50%, approximate load 480~800N
• OD 40 mm: ID=1/2OD=20mm, wire cross section 8.0*3.4 mm, optional length 51, 64, 76, 89, 102, 115, 127, 139, 152,178, 203, 254, 305 mm; compression ratio 30-50%, approximate load 730~1250N
• OD 50 mm: ID=1/2OD=25mm, wire cross section10.5*4.1 mm, optional length 64, 76, 89, 102, 115, 127, 139, 152,178, 203, 254, 305 mm; compression ratio 30-50%, approximate load 1500~2700N

2. About materials of this mold springs

     50CrVA is a higher grade spring, equivalent to US steel No. G61500, Japanese steel No. SUP10, British steel No. 735A51, German and French steel No. 50CrV4. It is mainly used as a high load important spring with large cross section and valve spring, piston spring, safety valve spring, heavy duty mould spring with working temperature <300 °C

3. Series of square cross section mold spring according ISO10243

4. About Us

• Located in Dongguan, Guangdong Province, the manufacturing capital of China, with 15 years of experience in the production of mould parts and 6 years of experience in foreign trade, with customers all over the world
• Customisation is available, such as laser printing your logo or company name on the springs
• Wholesale only, distributors of mould parts are welcome to contact us at any time
