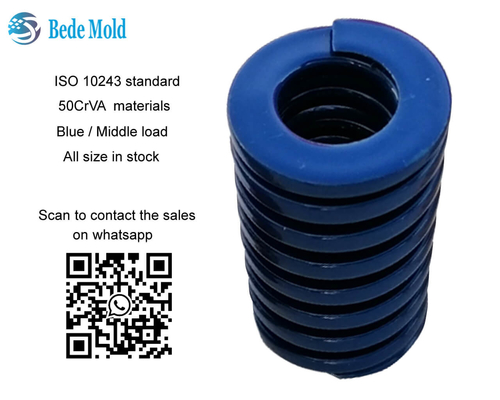

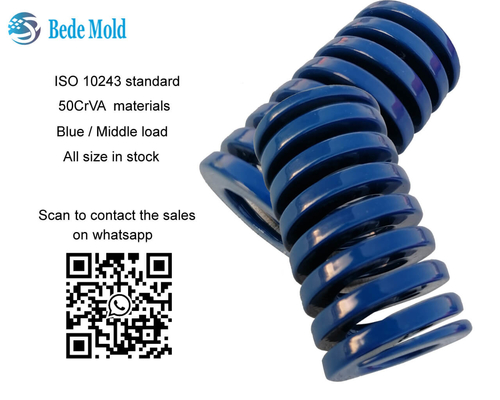

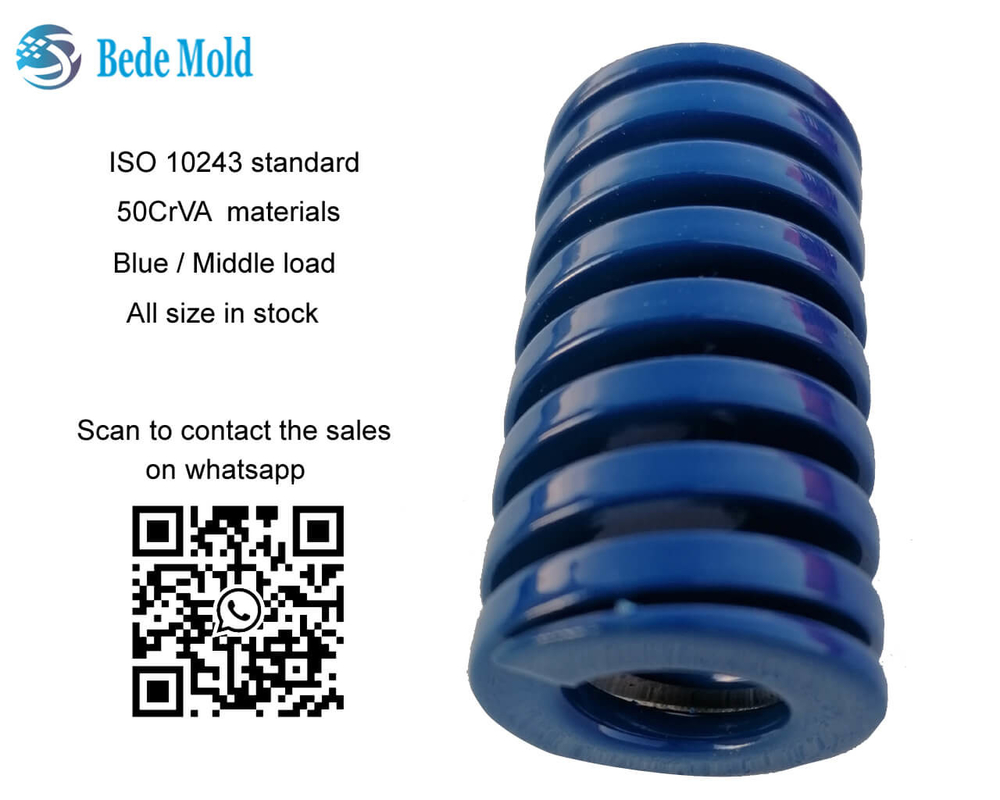

Medium Load Mold Springs Blue Color B Series Rectangular ISO10243 standard

Medium Load Mold Springs Blue Color B Series Rectangular ISO10243 standard

  • Medium Load Mold Springs Blue Color B Series Rectangular ISO10243 standard
  • Medium Load Mold Springs Blue Color B Series Rectangular ISO10243 standard
  • Medium Load Mold Springs Blue Color B Series Rectangular ISO10243 standard
Medium Load Mold Springs Blue Color B Series Rectangular ISO10243 standard
Product Details:
Place of Origin: China
Brand Name: BD
Certification: RoHS
Model Number: OD 10~63
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: PP bag
Delivery Time: within 3 days after payment
Payment Terms: Western Union, L/C, D/A, D/P, T/T
Supply Ability: 120000~150000 pieces per month
Contact Now
Detailed Product Description
Color: Blue Material: 50CrV4
Series: B Series Packing: Airfoam And Carton
Max. Deflection: 37.5% L0 Load Level: Medium
OD: 10~63mm (Standard Size) Length: 25~305mm

Light Load Mould Springs Green Color Compression Spring Rectangular Cross Section



1. Specifications of  B series Mold Springs



Dd / mm Dh /mm b x h  / mm load / N optional length   L0   / mm
10 5 1.9x1.3 100~183 25, 32, 38, 44, 51, 64, 76, 305
12.5 6.8 2.5x1.5 160~300 25, 32, 38, 44, 51, 64, 76, 89, 102, 305
16 8 3.2x2.0 300~550 25, 32, 38, 44, 51, 64, 76, 89, 102, 115, 305
20 10 4.1x2.4 450~920 25, 32, 38, 44, 51, 64, 76, 89, 102, 115, 127, 139, 152, 305
25 12.5 5.4x3.3 780~1100 25, 32, 38, 44, 51, 64, 76, 89, 102, 115, 127, 139, 152,178, 203, 305
32 16 6.8x4.0 1400~2600 38, 44, 51, 64, 76, 89, 102, 115, 127, 139, 152,178, 203, 254, 305
40 20 8.2x4.7 1800~3400 51, 64, 76, 89, 102, 115, 127, 139, 152,178, 203, 254, 305
50 25 11.1*5.8 2900~5000 64, 76, 89, 102, 115, 127, 139, 152,178, 203, 254, 305
63 38 11.5x9.1 4900~8900 76, 89, 102, 115, 127, 139, 152,178, 203, 254, 305



Medium Load Mold Springs Blue Color B Series Rectangular ISO10243 standard 0



2. About materials of this mold springs

     50CrVA is a higher grade spring, equivalent to US steel No. G61500, Japanese steel No. SUP10, British steel No. 735A51, German and French steel No. 50CrV4. It is mainly used as a high load important spring with large cross section and valve spring, piston spring, safety valve spring, heavy duty mould spring with working temperature <300 °C

Medium Load Mold Springs Blue Color B Series Rectangular ISO10243 standard 1
